| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

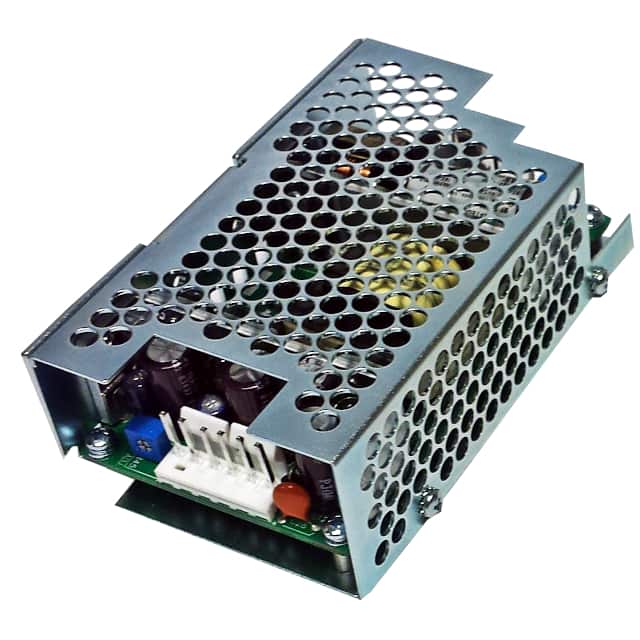

The Integrated Power Designs 1010424CHCO is an AC/DC converter designed for industrial, ITE (Commercial), and medical applications. It provides a single output of 3.3V at 6A, delivering a total power of 20W.
This converter operates with a universal input voltage range of 100 to 240 VAC and boasts an efficiency of 69%. Key features include adjustable output and universal input capabilities, making it versatile for various system designs. The operating temperature range is from 0°C to 70°C with derating.
Packaged in an enclosed chassis mount form factor, the unit measures 106.9mm in length, 62.7mm in width, and 35.6mm in height. It complies with standard numbers 60601-1 and 62368-1, and holds certifications from CE, cURus, TUV, and UKCA.
The 1010424CHCO provides a 3.3V output at 6A.
The power rating of the 1010424CHCO is 20W.
The 1010424CHCO has a universal input voltage of 100-240 VAC and features adjustable output.
The operating temperature range is 0°C to 70°C with derating.
The dimensions are 106.9mm x 62.7mm x 35.6mm.
The approval agencies are CE, cURus, TUV, and UKCA.
It complies with 60601-1 and 62368-1 standards.
