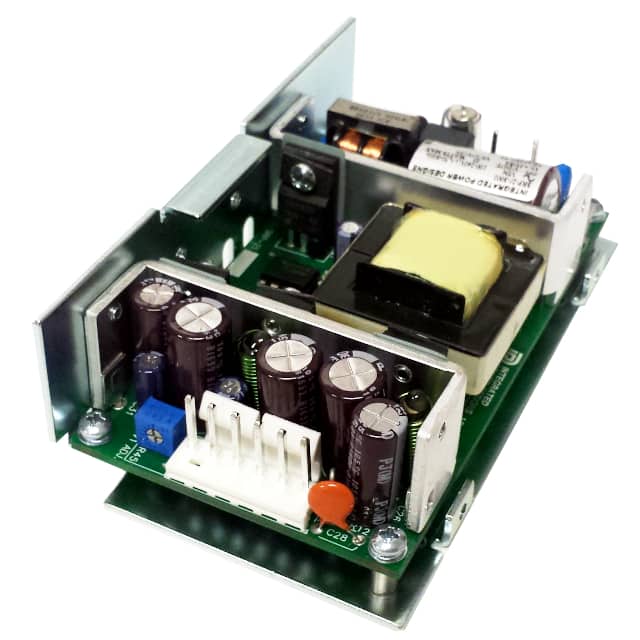

The Integrated Power Designs 1010421CH is an AC/DC converter designed for various applications including industrial, ITE (Commercial), and medical use. It provides a -5V output voltage and a total power of 25W, with an output current of 2A. The converter operates within a temperature range of 0°C to 70°C (with derating).
This model features adjustable output and a universal input, making it versatile for different power systems. It is designed for chassis mounting, ensuring a secure installation in equipment. The unit has an efficiency rating of 69% and complies with standards such as 60601-1 and 62368-1, with approvals from CE, cURus, TUV, and UKCA.
Key specifications include a length of 106.9mm, width of 62.7mm, and height of 35.6mm. It has two output channels. The RoHS status is listed as RoHS3 Compliant, Moisture Sensitivity Level (MSL) as 1 Unlimited, and REACH Status as REACH Unaffected, though these compliance details are noted with low confidence.
The total power output is 25W.
The efficiency is 69%.
The operating temperature range is 0°C to 70°C with derating.
It uses chassis mount.
It complies with 60601-1 and 62368-1.
The dimensions are 106.9mm x 62.7mm x 35.6mm.
It is suitable for industrial, ITE (commercial), and medical applications.
