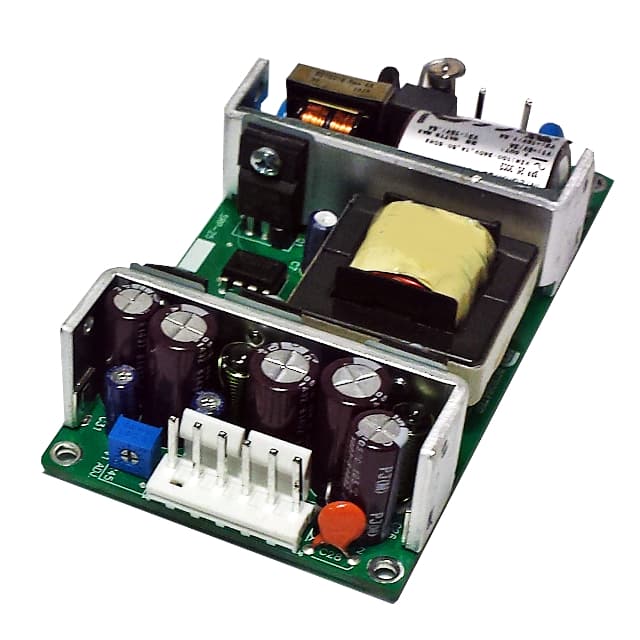

1010417 The Integrated Power Designs 1010417 is an open frame AC DC converter with 25W power output. It features adjustable output and universal input.
Mfr Part #:

1010417

Mfr Name: Integrated Power Designs
Integrated Power Designs
The Integrated Power Designs 1010417 is an open frame AC DC converter with 25W power output. It features adjustable output and universal input.
Stock on Request

1010417 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Standard Number
Type
Voltage
Width
View Similar Products (0)

1010417 Description

Short technical summary and product information.

The Integrated Power Designs 1010417 is an open frame AC DC converter designed for industrial, ITE (Commercial), and medical applications. This unit provides 25W of power and features an adjustable output with universal input capabilities.



Key specifications include three outputs, with one providing -12V at 500 mA. The converter operates within a temperature range of 0°C to 70°C with derating. Its dimensions are 101.6mm x 57.2mm x 25.4mm, and it is designed for chassis mounting.



Compliance is indicated by CE, cURus, TUV, and UKCA approvals, and it meets standards such as 60601-1 and 62368-1. The RoHS status is reported as RoHS3 Compliant, and the Moisture Sensitivity Level is MSL 1 Unlimited.

1010417 Quick Information

Product Type: AC DC Converter
Canonical Name: Integrated Power Designs 1010417 AC/DC Converter
Subcategory: AC DC Converters

1010417 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1010417 Features

  • Open frame AC DC converter design.
  • 25W total power output.
  • Features adjustable output and universal input.
  • Chassis mount for easy integration.
  • RoHS3 compliant for environmental standards.

1010417 Applications

  • Suitable for industrial applications.
  • Designed for ITE (Commercial) use.
  • Ideal for medical equipment.
  • Supports universal input voltage.

1010417 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range?

0°C to 70°C with derating.

What is the package type?

Open frame, chassis mount.

What are the output voltages?

5V, +12V, and -12V.

What is the total output power?

25W.

What is the efficiency?

69%.

What safety approvals are held?

CE, cURus, TUV, UKCA, and standards 60601-1 and 62368-1.

What are the physical dimensions?

101.6mm x 57.2mm x 25.4mm (4.00" x 2.25" x 1.00").
