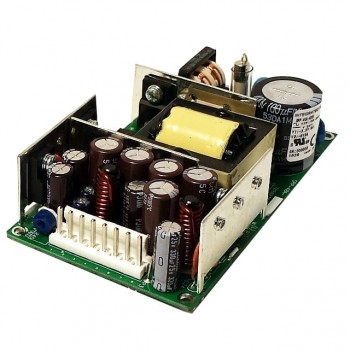

This AC/DC converter from Integrated Power Designs, part number 1010393, offers a power output of 40W with a single 5V output voltage and a maximum current of 8A. It is designed with a universal input voltage range of 100 to 240 VAC, making it suitable for global applications.
The converter features an open frame construction and chassis mount type, with dimensions of 4.25" L x 2.50" W x 1.20" H. Its efficiency is rated at 73%, and it operates within a temperature range of 0°C to 70°C with derating. Key features include adjustable output and universal input capabilities.
Designed for demanding environments, this AC/DC converter is suitable for Industrial, ITE (Commercial), and Medical applications. It holds approvals from CE, cURus, and TUV, adhering to standards such as 60601-1 and 62368-1.
The output voltage is 5V.
The maximum output current is 8A.
The power rating is 40W.
The input voltage range is 100 to 240 VAC.
It operates from 0°C to 70°C with derating.
It uses chassis mount.
It complies with standards 60601-1 and 62368-1.
