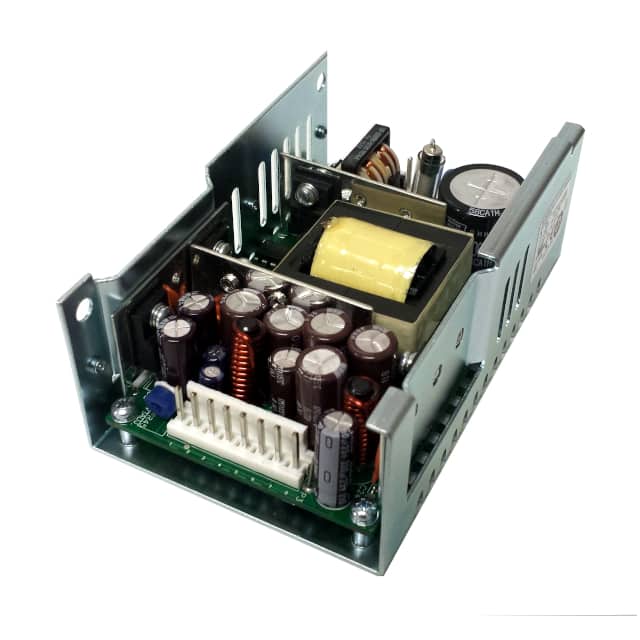

The Integrated Power Designs 1010382CHCO is a 40W AC/DC converter designed for versatile power supply applications. It provides four outputs: +5V, -5V, +15V, and -15V, with current ratings of 5A, 3A, 700mA, and 700mA respectively. The converter operates with a universal input voltage range of 100 to 240 VAC.
Key features include adjustable output and universal input capabilities, making it adaptable to various system requirements. With an efficiency of 73%, it is suitable for industrial, ITE (Commercial), and Medical applications. The unit is designed for chassis mounting and has dimensions of 113.0mm x 71.4mm x 43.2mm.
This AC/DC converter meets standard safety requirements, including 60601-1 and 62368-1, and holds approvals from CE, cURus, TUV, and UKCA agencies. The operating temperature range is from 0°C to 70°C with derating. Its robust design and multiple outputs make it a reliable choice for demanding power solutions.
Output 1: 5V at 5A. Output 2: -5V at 3A. Output 3: 15V at 700mA. Output 4: -15V at 700mA.
100-240 VAC.
0°C to 70°C with derating.
73%.
60601-1 and 62368-1.
113.0mm x 71.4mm x 43.2mm.
Chassis mount.
