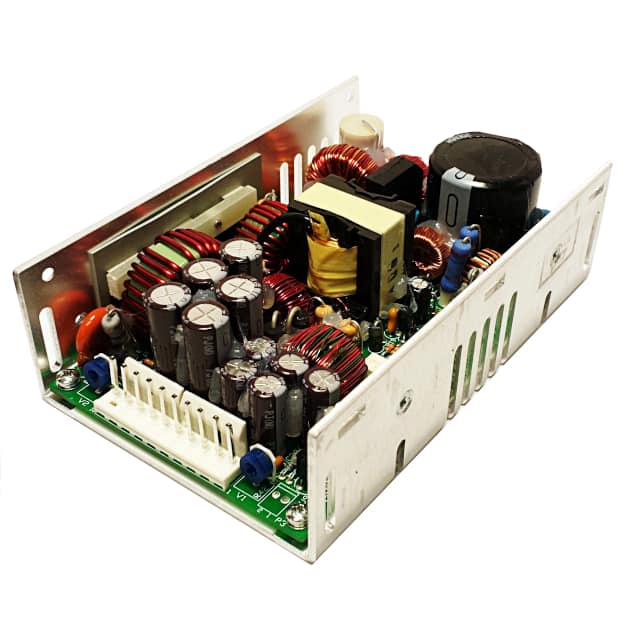

This AC/DC converter from Integrated Power Designs, part number 1010279, delivers 100W of power with a single 5V output at 20A. It is designed for universal input voltage ranging from 100 to 240 VAC, making it suitable for global applications. The converter operates with an efficiency of 76% and features adjustable output and universal input capabilities.
Designed for industrial, ITE (Commercial), and Medical applications, this unit is housed in a chassis-mount package with dimensions of 127.0mm x 83.8mm x 38.1mm. The operating temperature range is from 0°C to 70°C with derating. It meets safety standards including 60601-1 and 62368-1, and carries approvals from CE, cURus, TUV, and UKCA.
The series is identified as SRW-100. The product is ROHS3 Compliant and has an MSL rating of 1 Unlimited.
The output voltage is 5V.
The maximum output current is 20A.
The input voltage range is 100 to 240 VAC.
The power rating is 100W.
The operating temperature range is 0°C to 70°C with derating.
The dimensions are 127.0mm x 83.8mm x 38.1mm.
It complies with 60601-1 and 62368-1 standards.
