| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

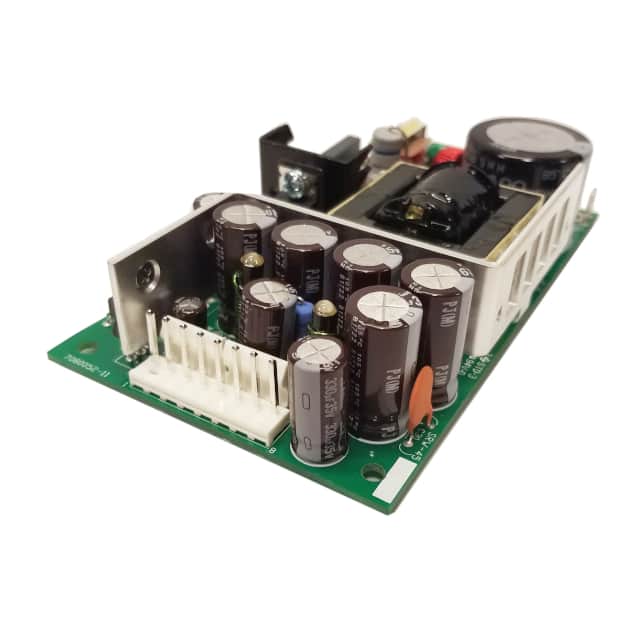

The Integrated Power Designs 1010251 is an AC/DC converter with a power rating of 45W. It is designed with an open frame construction and intended for chassis mounting.
This converter operates with a universal input voltage range of 100 to 240 VAC. It provides multiple outputs, including 8V and 18V, with specific current ratings for each. The unit features adjustable output and is suitable for industrial and ITE (Commercial) applications.
Key specifications include an efficiency of 70% and an operating temperature range of 0°C to 50°C with derating. The dimensions are 127.0mm x 76.2mm x 31.8mm. It complies with standard IEC 62368-1 and holds approvals from CE, TUV, and UKCA agencies.
The input voltage range is 100 to 240 VAC.
It has two 8V outputs (2A and 500mA) and two 18V outputs (700mA each).
The power rating is 45W.
The operating temperature range is 0°C to 50°C with derating.
The dimensions are 127.0mm x 76.2mm x 31.8mm.
It complies with standard 62368-1.
Approval agencies include CE, TUV, and UKCA.
