| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

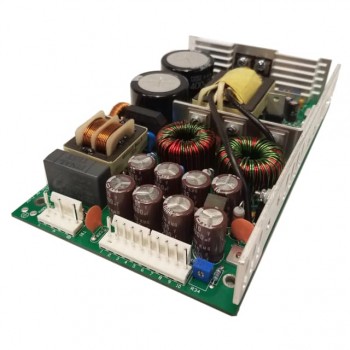

The Integrated Power Designs 1010115 is an AC/DC converter designed for industrial and commercial ITE applications. This open-frame unit provides a power output of 115W with dual outputs of +24V and -24V, each capable of delivering up to 2.5A.
Key electrical specifications include an input voltage range of 100 to 240 VAC and an efficiency rating of 76%. The operating temperature range is from 0°C to 50°C with derating. Features such as adjustable output and universal input enhance its versatility.
Mechanically, the converter is designed for chassis mounting and has dimensions of 7.00" L x 4.25" W x 1.45" H (177.8mm x 108.0mm x 36.8mm). It is approved by CE and TUV, adhering to standard 62368-1.
This model is RoHS3 Compliant and has an MSL rating of 1. It is suitable for applications requiring stable power conversion in demanding environments.
The Integrated Power Designs 1010115 provides dual outputs of +24V and -24V.
The maximum output current for each channel is 2.5A.
The total power output of the 1010115 is 115W.
The input voltage range is 100 to 240 VAC.
The operating temperature range is 0°C to 50°C with derating.
The 1010115 supports chassis mounting.
The dimensions are 7.00" L x 4.25" W x 1.45" H (177.8mm x 108.0mm x 36.8mm).
