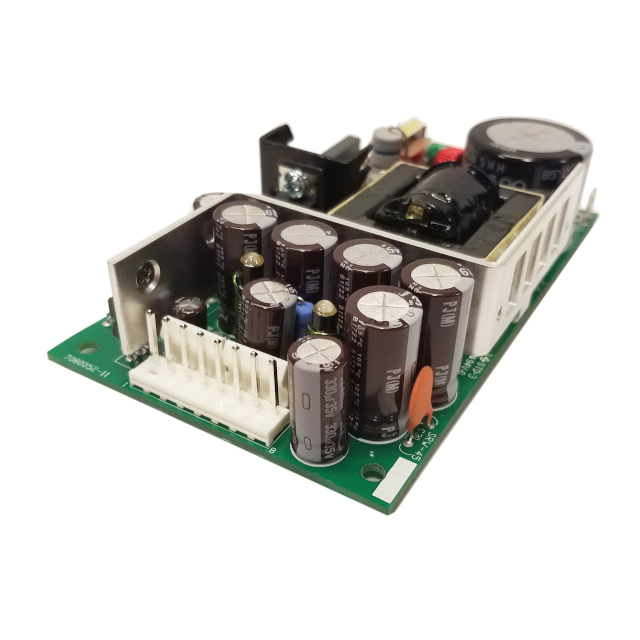

The Integrated Power Designs 1010107 is an open frame AC/DC converter designed for industrial and ITE commercial applications. It provides a total power output of 45W and accepts a universal input voltage range of 100 to 240 VAC.
This converter features three output voltages: 5V, +15V, and -15V, with corresponding current capabilities of 5A, 2A, and 700mA respectively. It offers adjustable output and a universal input feature for broad compatibility. The efficiency is rated at 70%.
With a chassis mount type, the unit has dimensions of 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm). The operating temperature range is from 0°C to 50°C with derating. It is certified by CE, TUV, and UKCA, and complies with standard number 62368-1.
The input voltage range is 100 to 240 VAC.
The converter provides output voltages of 5V, 15V, and -15V.
The maximum output current for the 5V rail is 5 A.
The total power output is 45W.
The operating temperature range is 0°C to 50°C with derating.
The dimensions are 127.0mm L x 76.2mm W x 31.8mm H.
It complies with standard number 62368-1 and is approved by CE, TUV, and UKCA.
