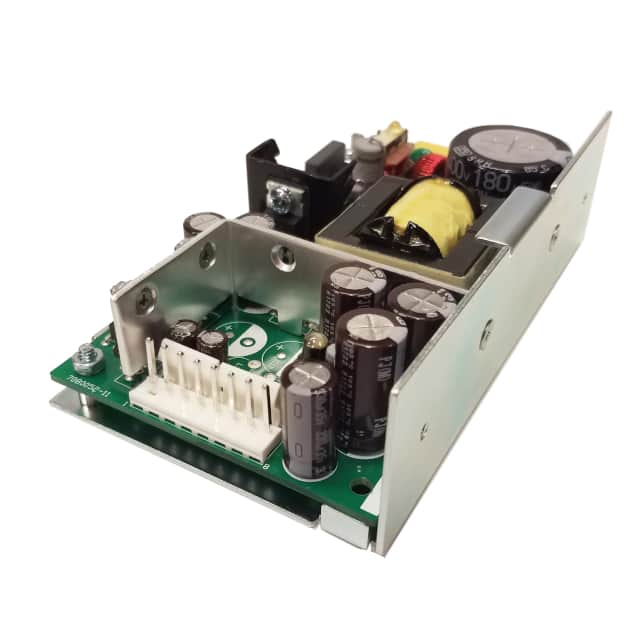

The Integrated Power Designs 1010098CH is a chassis-mount AC/DC converter designed for industrial and ITE commercial applications. It provides a 12V output voltage with a maximum current of 4A, delivering a total power of 45W. The converter operates with a universal input voltage range of 100 to 240 VAC and offers an efficiency of 70%.
Key features include adjustable output and universal input capabilities, making it versatile for various power supply needs. The operating temperature range is from 0°C to 50°C with derating. Its dimensions are 130.8mm x 82.6mm x 39.6mm (5.15" L x 3.25" W x 1.56" H).
This AC/DC converter meets standard number 62368-1 and is approved by CE, TUV, and UKCA agencies. It is suitable for applications requiring a reliable and efficient power conversion solution within industrial environments.
The output voltage is 12V.
The maximum output current is 4A.
The power rating is 45W.
The input voltage range is 100 to 240 VAC.
The operating temperature range is 0°C to 50°C (With Derating).
It uses chassis mount.
The dimensions are 130.8mm x 82.6mm x 39.6mm.
