| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

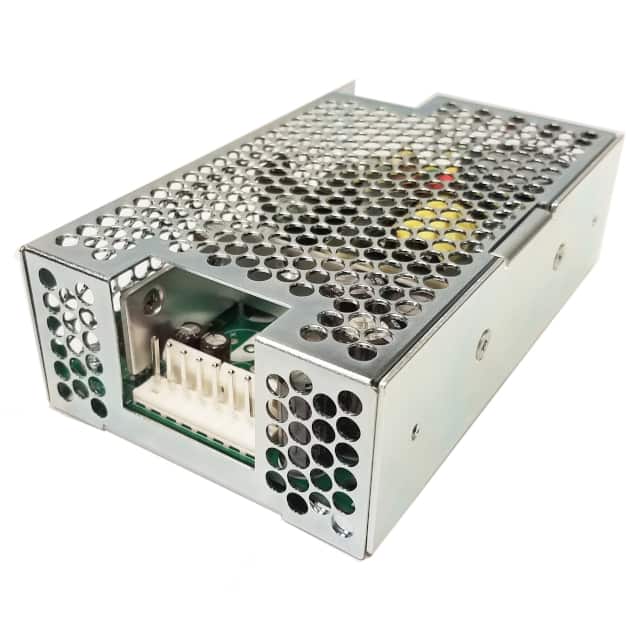

This enclosed AC/DC converter from Integrated Power Designs, part number 1010097CHCO, provides 45W of power with a 9A output current. It operates with a universal input voltage range of 100 to 240 VAC.
The converter is designed for chassis mounting and features adjustable output and universal input capabilities. Its dimensions are 130.8mm in length, 82.6mm in width, and 39.6mm in height. The efficiency is rated at 70% and it operates within a temperature range of 0°C to 50°C with derating.
Applications for this converter include industrial and ITE (Commercial) environments. It is approved by CE, TUV, and UKCA, and complies with standard 62368-1. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level is 1.
The power output is 45W.
The input voltage range is 100 to 240 VAC.
The output current is 9 A.
The dimensions are 130.8mm in length, 82.6mm in width, and 39.6mm in height.
The operating temperature range is 0°C to 50°C (With Derating).
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
