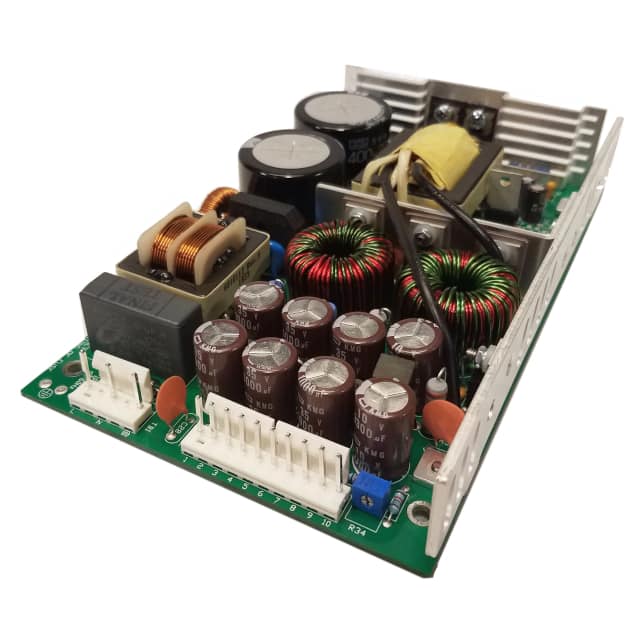

The Integrated Power Designs 1010093 is an Open Frame AC/DC converter designed for industrial and ITE commercial applications. It provides a 24V output voltage with a maximum current of 3A, delivering a total power of 115W. This converter features adjustable output and universal input capabilities, enhancing its versatility.
With a chassis mount type, the 1010093 offers convenient integration into various systems. Its dimensions are 177.8mm in length, 108.0mm in width, and 36.8mm in height. The operating temperature range is from 0°C to 50°C, with derating considered. The unit is certified by CE, TUV, and UKCA, and complies with standard 62368-1.
Key specifications include an efficiency of 76% and two output channels. The RoHS status is RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1 Unlimited. REACH status is unaffected.
The 1010093 provides dual outputs of 5V and 24V.
The power rating is 115W.
The operating temperature range is 0°C to 50°C with derating.
The 1010093 uses chassis mount mounting.
The dimensions are 177.8mm length, 108.0mm width, and 36.8mm height.
It has CE, TUV, and UKCA approvals to standard 62368-1.
The efficiency is 76%.
