| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

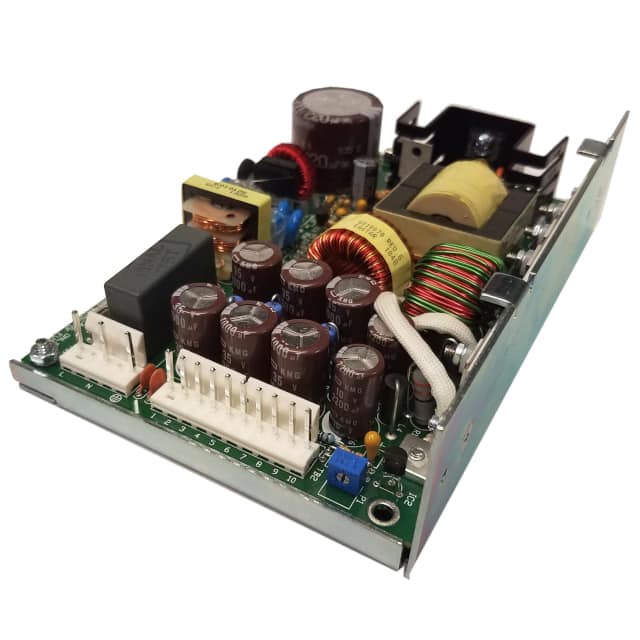

This AC/DC converter from Integrated Power Designs, part number 1010029CH, offers a power output of 65W and a primary output voltage of 12V. It is designed for versatility with a universal input voltage range of 100 to 240 VAC, making it suitable for global applications.
The converter features adjustable output capabilities and is built for demanding environments, indicated by its operating temperature range of 0°C to 50°C with derating. It meets safety standards with approval agencies including CE, TUV, and UKCA, and complies with standard 62368-1.
With a chassis mount type, this unit is intended for integration into industrial systems and commercial ITE equipment. Its efficiency is rated at 76%, and it provides three output channels. The physical dimensions are 158.2mm in length, 108.0mm in width, and 41.9mm in height.
The output voltage is 12V with a maximum current of 2A.
The input voltage range is 100 to 240 VAC.
The operating temperature range is 0°C to 50°C with derating.
It has three outputs.
The efficiency is 76%.
It is approved by CE, TUV, and UKCA, compliant with standard 62368-1.
The dimensions are 158.2mm (length) x 108.0mm (width) x 41.9mm (height).
