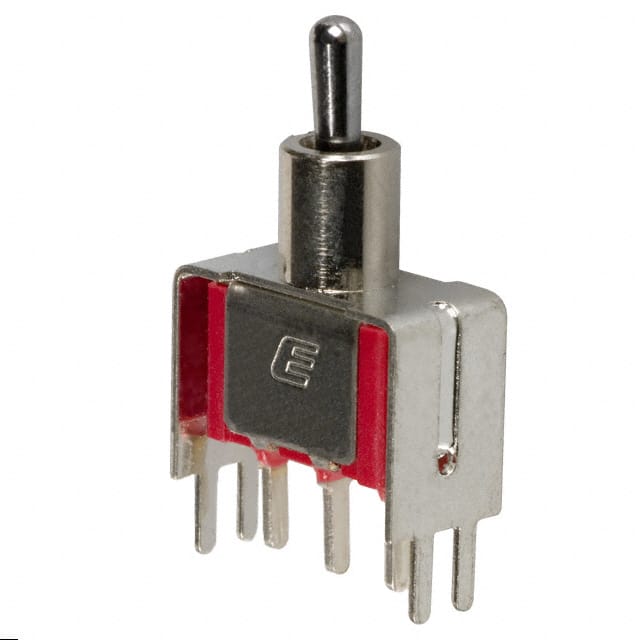

100SP1T2B4VS2QE The E-Switch 100SP1T2B4VS2QE is a SPDT toggle switch designed for through-hole mounting. It features a 5A 120V rating and epoxy sealed terminals.
Mfr Part #:

100SP1T2B4VS2QE

Available from 2 distributors
Mfr Name: E-Switch
E-Switch
The E-Switch 100SP1T2B4VS2QE is a SPDT toggle switch designed for through-hole mounting. It features a 5A 120V rating and epoxy sealed terminals.
✓ Total Stock: 56 pcs
$ Price Range: $0.75

100SP1T2B4VS2QE Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
54 pcs
On Request
54 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

100SP1T2B4VS2QE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Material
Actuator Type
Bushing Thread
Circuit
Current Rating (Amps)
Features
Illumination
Mounting Type
Operating Temperature
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

100SP1T2B4VS2QE Description

Short technical summary and product information.

This E-Switch 100SP1T2B4VS2QE is a miniature toggle switch from the Series 100. It features a Single Pole Double Throw (SPDT) circuit with an On-On function, suitable for various electrical control applications.



The switch is rated for 5A at 120V AC and 28V DC, with an electrical life of 40,000 cycles. It is designed for through-hole mounting and utilizes PC pin termination style. The actuator is a standard round type with a length of 5.08mm, and the terminals are epoxy sealed for added protection.



Operating within a temperature range of -30°C to 85°C, this non-illuminated toggle switch offers reliable performance. The bushing thread is unthreaded, and the actuator material is brass with a chrome-plated finish.

100SP1T2B4VS2QE Quick Information

Product Type: Toggle Switch
Series: 100
Canonical Name: E-Switch 100SP1T2B4VS2QE SPDT Toggle Switch
Subcategory: Toggle Switches

100SP1T2B4VS2QE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

100SP1T2B4VS2QE Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

100SP1T2B4VS2QE Features

  • SPDT circuit with On-On switch function.
  • Rated for 5A at 120V AC and 28V DC.
  • Through-hole mounting with PC pin termination.
  • Epoxy sealed terminals for durability.
  • Operates from -30°C to 85°C.

100SP1T2B4VS2QE Applications

  • Ideal for general purpose switching.
  • Suitable for control panel applications.
  • Used in electronic equipment circuits.
  • Reliable for intermittent power control.

100SP1T2B4VS2QE FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the E-Switch 100SP1T2B4VS2QE toggle switch?

The current rating is 5A (AC/DC).

What are the AC and DC voltage ratings for this toggle switch?

The AC voltage rating is 120V and the DC voltage rating is 28V.

What is the operating temperature range for the 100SP1T2B4VS2QE?

The operating temperature range is -30°C to 85°C.

What type of mounting does the 100SP1T2B4VS2QE toggle switch use?

It uses through-hole mounting.

What is the termination style for this E-Switch toggle switch?

The termination style is PC Pin.

Does the 100SP1T2B4VS2QE have epoxy sealed terminals?

Yes, it features epoxy sealed terminals.
