| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Dimensions | |
| Features | |
| Mounting Type | |
| Temperature Coefficient | |
| Thickness (Max) | |
| Tolerance | |
| Voltage Rating |

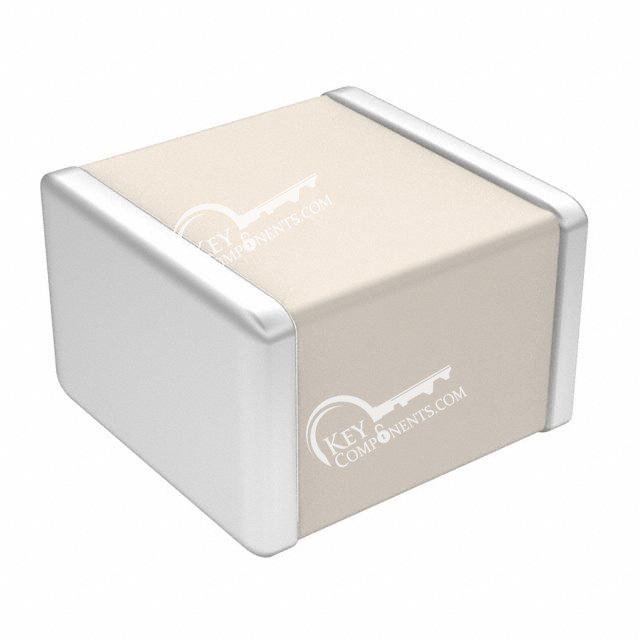

The American Technical Ceramics 100B3R9CT500XT is a multilayer ceramic capacitor (MLCC) from the Porcelain Superchip® ATC 100B series. It offers a capacitance of 3.9 pF with a tight tolerance of ±0.25 pF and a high voltage rating of 500V.
This capacitor is engineered for demanding applications, featuring High Q, Low Loss, and Low ESL characteristics. Its operating temperature range is from -55°C to 175°C. The P90 temperature coefficient indicates its specific dielectric properties.
Designed for surface mounting, the 100B3R9CT500XT comes in a 1111 (2828 Metric) package with dimensions of 0.110" x 0.110" (2.79mm x 2.79mm) and a maximum thickness of 0.102" (2.59mm). Its applications include RF, Microwave, High Frequency, Bypass, and Decoupling circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance of the 100B3R9CT500XT capacitor is 3.9 pF.
The voltage rating for the 100B3R9CT500XT capacitor is 500V.
The operating temperature range for this ceramic capacitor is -55°C to 175°C.
Key features include High Q, Low Loss, and Low ESL.
This capacitor is suitable for RF, Microwave, High Frequency, Bypass, and Decoupling applications.
The dimensions are 0.110" L x 0.110" W (2.79mm x 2.79mm).
