| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

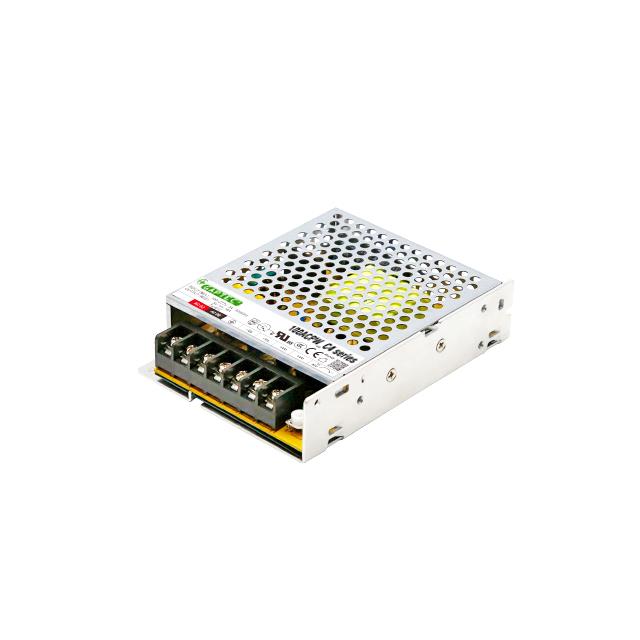

The GAPTEC Electronic 100ACPW_36S4 is a versatile AC/DC converter designed for various applications, including household appliances and ITE commercial equipment. This enclosed unit delivers a power output of 101W with a stable 36V output voltage and a current rating of 2.8A.
Key features include adjustable output and DC input capability, providing flexibility in power system design. The converter operates within an input voltage range of 85-305 VAC or 120-431 VDC, with an efficiency of 89.5%. Its dimensions are 129.0mm x 97.0mm x 30.0mm, making it suitable for chassis mounting.
The 100ACPW_36S4 meets safety standards with cURus and UL approvals and offers an isolation voltage of 4 kV. It is designed to operate in temperatures ranging from -30°C to 70°C with derating. This converter is part of the 100ACPW_4 series, offering reliable power conversion for demanding environments.
The input voltage range is 85 to 305 VAC and 120 to 431 VDC.
The output is 36V at 2.8A, providing 101W of power.
The efficiency is 89.5%.
The operating temperature range is -30°C to 70°C with derating.
It is approved by cURus and UL, and complies with standards 60335-1 and 62368-1.
It is chassis mount and enclosed type.
Yes, it is DC input capable, accepting 120 to 431 VDC.
