| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,050 pcs
|
1050 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flammability Rating | |
| Flange Feature | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Storage Temperature | |
| Termination | |
| Termination Style |

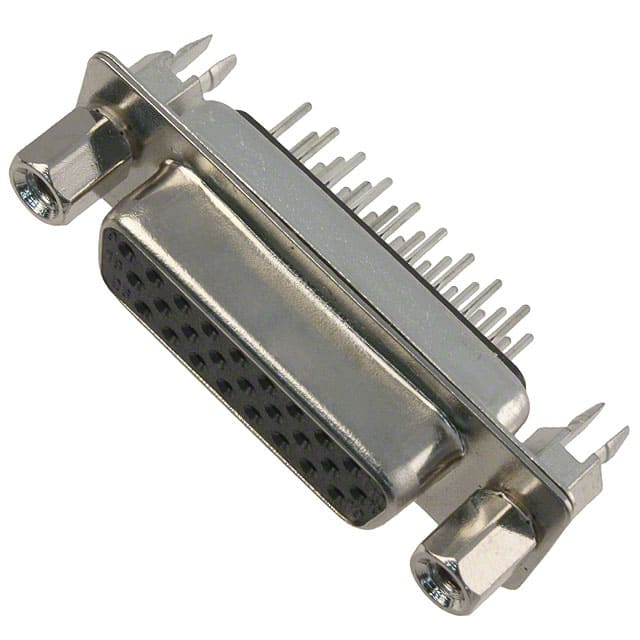

The Amphenol ICC 10090929-S264VLF is a D-Sub High Density receptacle connector designed for reliable signal interconnection in electronic systems. It offers 26 female socket contacts arranged in a compact 3-row high density layout, enabling higher circuit density compared to standard D-Sub connectors.
The connector is rated for 2.5A per contact and features gold flash contact finish for reliable signal integrity. The through hole mounting style with solder termination provides robust mechanical attachment to printed circuit boards. The steel shell is nickel plated for durability and EMI shielding, and includes board locks for secure PCB retention.
This receptacle uses shell size 2 (DA, A) high density layout and includes flange features with board side (4-40) and mating side female screwlock (4-40) fastening. The insulator material meets UL94 V-0 flammability rating.
This D-Sub High Density receptacle has 26 positions arranged in 3 rows.
Each contact is rated for 2.5A.
This connector uses through hole mounting with solder termination.
The contacts have a gold flash finish.
