| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
990 pcs
|
990 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Storage Temperature | |
| Termination | |
| Termination Style |

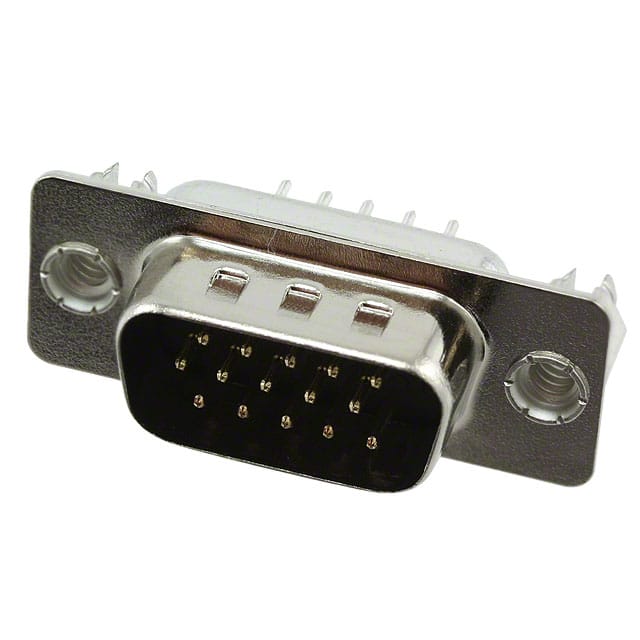

The 10090928-P154XLF is a high density D-Sub plug connector from Amphenol ICC. It features 15 male pin contacts arranged in 3 rows, with gold flash contact finish for reliable signal transmission. The connector is designed for through hole mounting with solder termination.
This connector incorporates a board side flange with 4-40 screw locking, board lock features, and grounding indents for secure attachment and EMI protection. The shell is made of steel with nickel plating, offering durability and corrosion resistance. The insulator material has a UL94 V-0 flammability rating for safety compliance.
Each contact is rated for 2.5 A current. The connector uses a 1 (DE, E) high density shell layout. It is suitable for applications requiring high density signal connections in a compact D-Sub form factor.
15 positions in 3 rows.
2.5 A per contact.
Through hole with solder termination.
Gold flash plating.
Steel with nickel plating.
