| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Storage Temperature | |
| Termination | |
| Termination Style |

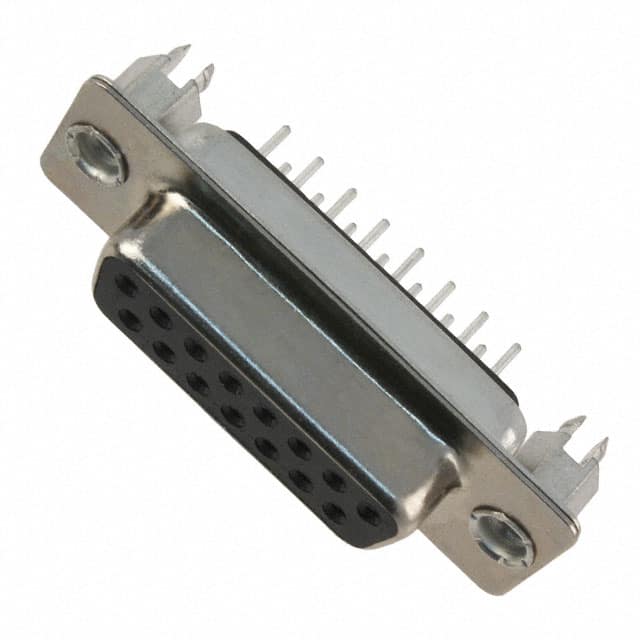

The Amphenol ICC 10090098-S154XLF is a D-Sub receptacle connector with 15 female socket contacts arranged in 2 rows. It features a steel shell with tin-nickel plating and a board-side flange with 4-40 threaded inserts for secure mounting. The connector is designed for through hole mounting with solder termination, making it suitable for vertical PCB installation.
Electrical specifications include a current rating of 5A per contact for signal applications. The contacts are gold flash plated for reliable conductivity and corrosion resistance. The insulator material has a UL94 V-0 flammability rating, ensuring safety in various environments.
This connector includes a board lock feature for secure attachment to the PCB during soldering. The shell size is 2 (DA, A), which is standard for 15-position D-Sub connectors. It is designed for signal-level interconnections in industrial, telecommunications, and computing equipment.
Receptacle, Female Sockets; D-Sub style.
15 positions arranged in 2 rows.
Through hole mounting with solder termination.
5A per contact for signal applications.
Gold flash plating.
Steel with tin-nickel plating.
UL94 V-0.
