| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Actuator Material | |
| Automotive Grade | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

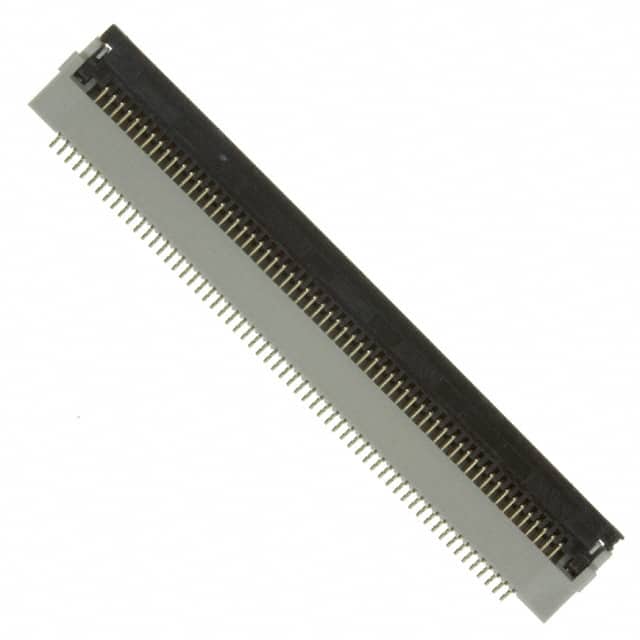

The Amphenol ICC 10085901-6015ELF is a 60-position FFC/FPC connector with a 0.50mm pitch, designed for surface mount right-angle mounting. It features bottom contacts and a zero insertion force (ZIF) mechanism with a slide lock for secure cable retention. The connector accepts FFC/FPC cables with a thickness of 0.30mm and has a tapered cable end type.
Electrical rating is 50V, and the operating temperature range spans -55°C to 85°C. The housing and actuator are made of thermoplastic with a UL94 V-0 flammability rating. Contacts are copper alloy with gold finish, ensuring reliable conductivity.
This connector is suitable for high-density PCB layouts where space is limited. The right-angle orientation and low 2.00mm height above board make it ideal for compact electronic assemblies. It supports both FFC and FPC flat flex cable types.
60 positions.
0.50mm (0.020").
50V.
Surface mount, right angle.
-55°C to 85°C.
Gold.
Slide lock.
