| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
780 pcs
|
780 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
738 pcs
|
738 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Tolerance | |
| Width |

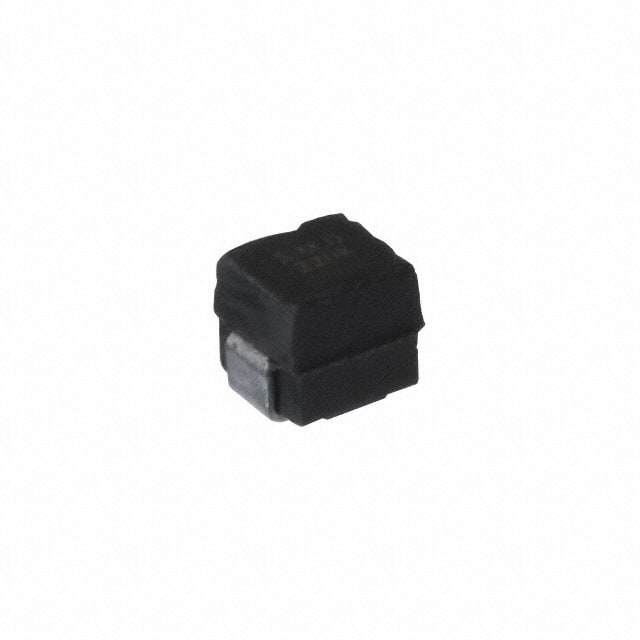

The 1008-681K is a fixed inductor manufactured by API Delevan Inc. It features an inductance of 680 nH with a tolerance of ±10%. The component is rated for a maximum DC current of 760 mA and has a maximum DC resistance of 260 mOhm. It is designed for surface mount (SMD) applications and comes in a nonstandard package measuring 2.66 mm x 2.41 mm x 2.41 mm. The coil is unshielded and uses a ferrite core material. Electrical performance includes a Q factor of 40 at 25 MHz and a self-resonant frequency of 175 MHz. The operating temperature range spans from -55°C to 125°C, making it suitable for a variety of environments. This inductor is commonly used in RF and signal filtering circuits where stable inductance and moderate current handling are required.
The inductance is 680 nH with a tolerance of ±10%.
The maximum DC current rating is 760 mA.
The maximum DC resistance is 260 mOhm.
The self-resonant frequency is 175 MHz.
The operating temperature range is -55°C to 125°C.
The Q factor is 40 at 25 MHz.
Surface Mount (SMD).
