| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,800 pcs
|
4800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Max | |
| Pitch | |
| Read Out | |
| Termination | |
| Termination Style |

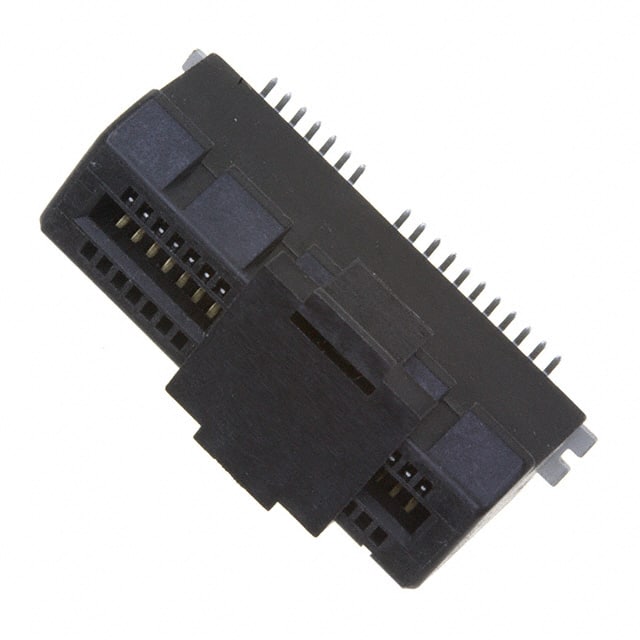

The Amphenol ICC 10061913-110PLF is a 36-position, 2-row PCI Express female edgeboard connector designed for reliable card-to-board connections. It features a 1.00mm pitch and accepts a 0.062" (1.57mm) thick card. The connector uses dual read-out cantilever contacts made of copper alloy with 15.0µin gold plating for robust signal integrity.
This surface-mount connector includes design features such as a board guide, locking ramp, pick-and-place capability, and solder retention for automated assembly. It is rated for an operating temperature range of -55°C to 85°C, making it suitable for a wide variety of environments.
The connector is housed in a black thermoplastic insulator and is RoHS3 compliant with MSL 1 (unlimited) moisture sensitivity. It is designed for PCI Express applications requiring a 1.00mm pitch and 0.062" card thickness.
The pitch is 1.00mm (0.039 inches).
It has 36 positions arranged in 2 rows.
Surface mount with solder termination.
-55°C to 85°C.
0.062" (1.57mm).
Gold plating with 15.0µin thickness on copper alloy cantilever contacts.
