| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Termination |

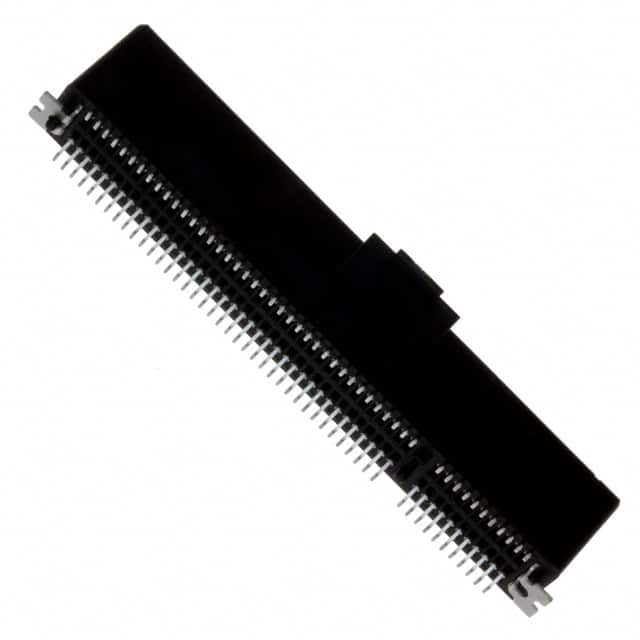

The Amphenol ICC 10061913-102CLF is a PCI Express female edgeboard connector designed for high-speed data applications. It features 98 positions arranged in 2 rows with a 1.00mm pitch, providing a compact and reliable interface for PCI Express cards.
The connector uses dual readout cantilever contacts with 30.0µin gold plating over a copper alloy base, ensuring excellent conductivity and corrosion resistance. It is rated for an operating temperature range of -55°C to 85°C, making it suitable for a wide variety of environments.
This surface-mount connector includes features such as a board guide, locking ramp, pick-and-place capability, and solder retention, facilitating automated assembly and secure board attachment. The black housing and 1.57mm card thickness are standard for PCI Express applications.
It has 98 positions arranged in 2 rows.
The pitch is 1.00mm.
It is a surface mount connector with solder termination.
The operating temperature range is -55°C to 85°C.
The contacts have a gold finish with 30.0µin thickness.
