| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
153 pcs
|
153 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Gender | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Tape & Reel | |
| Termination |

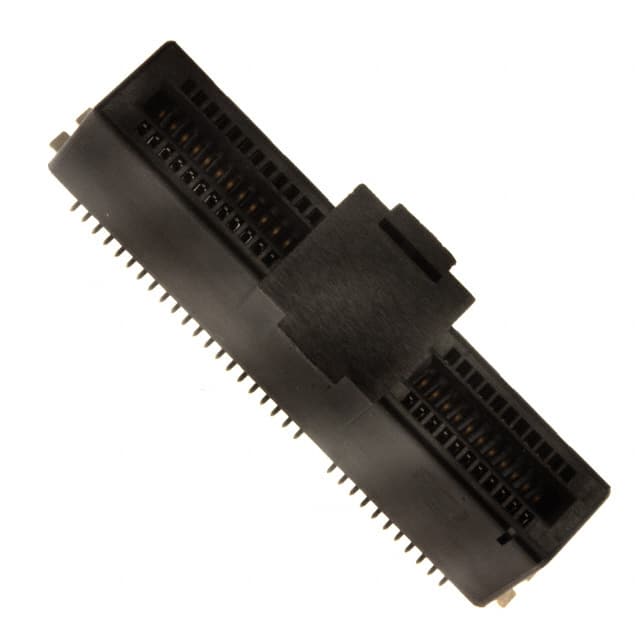

This is a PCI Express female edge connector from Amphenol ICC, designed for high-speed data transmission in computing and networking applications. It features 64 positions arranged in a dual-row configuration with a 1.00mm pitch.
The connector has a black housing with a board guide, locking ramp, and pick-and-place features for automated assembly. Contacts are made of copper alloy with gold plating (30µin) for reliable electrical performance.
It is surface mount compatible with solder termination, and operates over a temperature range of -55°C to 85°C. The card thickness is 1.57mm (0.062"), standard for PCI Express cards.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.63 | $4.63 |
| 10+ | $4.31 | $4.31 |
| 25+ | $4.17 | $4.17 |
| 50+ | $4.09 | $4.09 |
| 100+ | $3.98 | $3.98 |
| 250+ | $3.81 | $3.81 |
| 500+ | $3.66 | $3.66 |
| 1,000+ | $3.54 | $3.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.00mm
64 positions
Surface mount
-55°C to 85°C
Gold, 30µin (0.76µm) thickness
0.062" (1.57mm)
RoHS3 compliant (unverified)
