| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
152 pcs
|
152 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Gender | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Tape & Reel | |
| Termination |

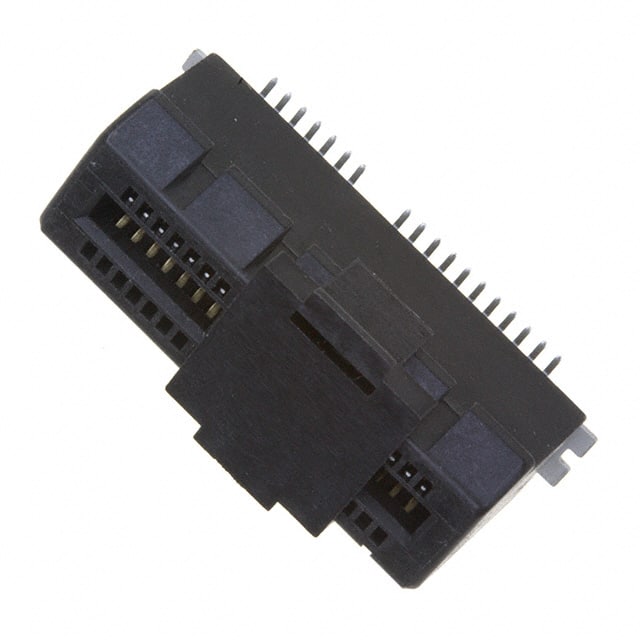

The 10061913-100CLF is a PCI Express female edge connector manufactured by Amphenol ICC. It features 36 positions arranged in 2 rows with a 1.00mm pitch, designed for surface mount soldering. The connector accepts a 1.57mm thick PCI Express card and utilizes dual readout cantilever contacts made of copper alloy with gold plating (0.76µm). The housing is black and includes features such as board guide, board lock, pick and place, and solder retention for reliable assembly. Operating temperature range is -55°C to 85°C. This connector is RoHS3 compliant and has an MSL of 1 (unlimited). It is suitable for PCI Express interface applications in computing and communications equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.85 | $4.85 |
| 10+ | $4.13 | $4.13 |
| 25+ | $3.68 | $3.68 |
| 100+ | $3.51 | $3.51 |
| 250+ | $3.29 | $3.29 |
| 500+ | $3.13 | $3.13 |
| 1,000+ | $2.83 | $2.83 |
| 2,100+ | $2.80 | $2.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
36 positions.
1.00mm.
Surface mount.
Gold with 0.76µm thickness.
-55°C to 85°C.
1.57mm.
RoHS3 compliant (unverified).
