| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
313 pcs
|
313 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| UL94 Flammability | |
| Voltage Rating |

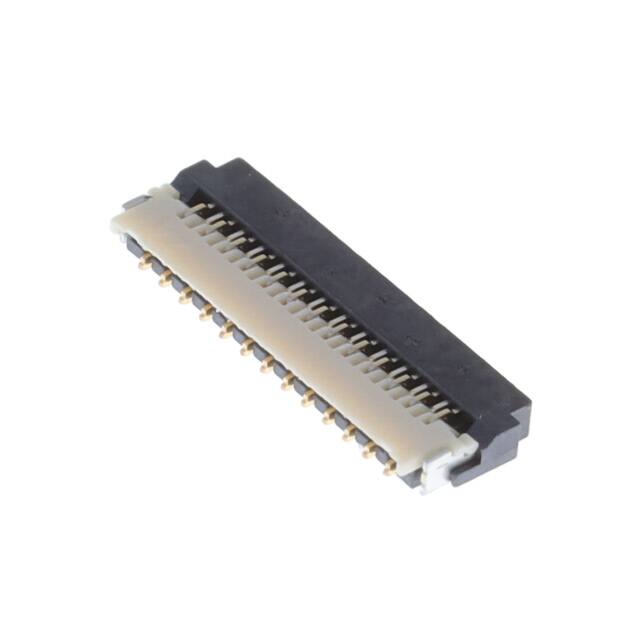

The Amphenol ICC 10061122-251120HLF is a 25-position FPC (Flexible Printed Circuit) connector with a fine 0.3mm pitch, designed for surface mount right-angle mounting. This connector features a bottom contact configuration and a Zero Insertion Force (ZIF) flip lock actuator for secure cable retention without damaging the flex circuit.
Key specifications include a 30V voltage rating, an operating temperature range of -55°C to +85°C, and a UL94 V-0 flammability rating. The housing and actuator are made from halogen-free thermoplastic, and the contacts are gold-plated copper alloy. Solder retention features aid in reliable board-level attachment.
The connector accepts a 0.30mm thick FPC cable and has a low height above board of 0.88mm, making it suitable for compact, space-constrained designs. The flip lock mechanism simplifies cable insertion and removal while ensuring a reliable connection.
| Qty | Low | High |
|---|---|---|
| 5,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
25 positions.
0.30mm.
Surface mount, right angle.
30V.
-55°C to 85°C.
