| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Connector/Contact Position | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| FFC/FPC Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Termination Style | |
| Voltage Rating |

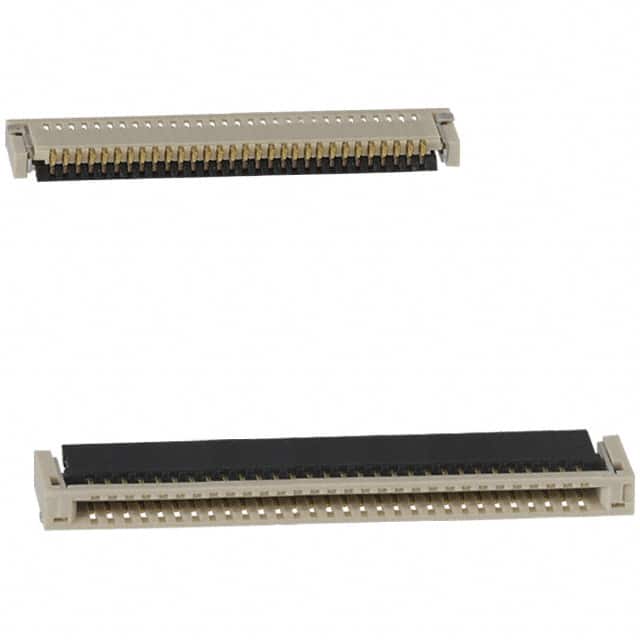

The 10051922-3010ELF is a 30-position FPC connector manufactured by Amphenol ICC, designed for surface mount right angle mounting. It operates with a pitch of 0.50mm and accepts FPC cables with a thickness of 0.30mm. The connector features a slide lock mechanism for secure cable retention and Zero Insertion Force (ZIF) for easy insertion and removal.
Electrical characteristics include a voltage rating of 50V. The connector is rated for an operating temperature range of -55°C to 85°C. The housing is made of Liquid Crystal Polymer (LCP) with glass filling, and the actuator is polyamide (PA9T) with glass filling. Contacts are made of copper alloy with a gold finish to ensure reliable electrical connections.
This connector is suitable for applications requiring flexible circuit connections in compact electronic devices. Its right-angle orientation and low profile (1.30mm height above board) make it ideal for space-constrained designs. The slide lock and ZIF features simplify assembly and maintenance.
30 positions.
0.50mm (0.020 inches).
50V.
Surface mount, right angle.
-55°C to 85°C.
Gold.
Slide lock.
