| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| Contact Position | |
| FFC, FCB Thickness | |
| FFC/FPC Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Voltage Rating |

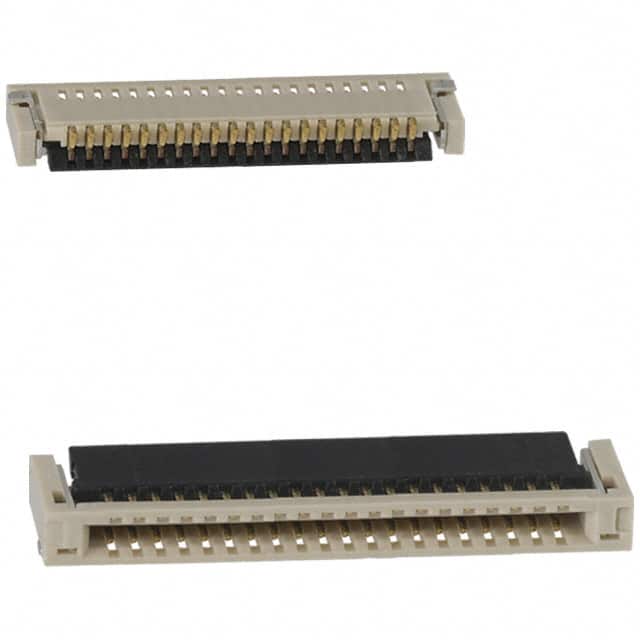

The Amphenol ICC 10051922-2010ELF is a 20-position FPC connector featuring a 0.50mm (0.020") pitch and a right-angle surface mount design. It is equipped with bottom contacts, gold-plated copper alloy contacts, and a slide lock actuator for secure cable retention. The housing is constructed from liquid crystal polymer (LCP) with glass filling, and the actuator is polyamide (PA9T) with glass filling, both rated UL94 V-0.
This connector supports a cable end thickness of 0.30mm and features solder retention for reliable board-level attachment. The operating temperature range is -55°C to 85°C, and the voltage rating is 50V. The zero insertion force (ZIF) mechanism simplifies cable insertion and removal without stressing the contacts.
Typical applications include consumer electronics, portable devices, and any compact interconnect requiring a reliable FPC connection with fine pitch and low profile. The right-angle orientation and low 1.30mm above-board height make it suitable for space-constrained designs.
0.50mm (0.020")
20 positions
Surface mount, right angle
-55°C to 85°C
50V
