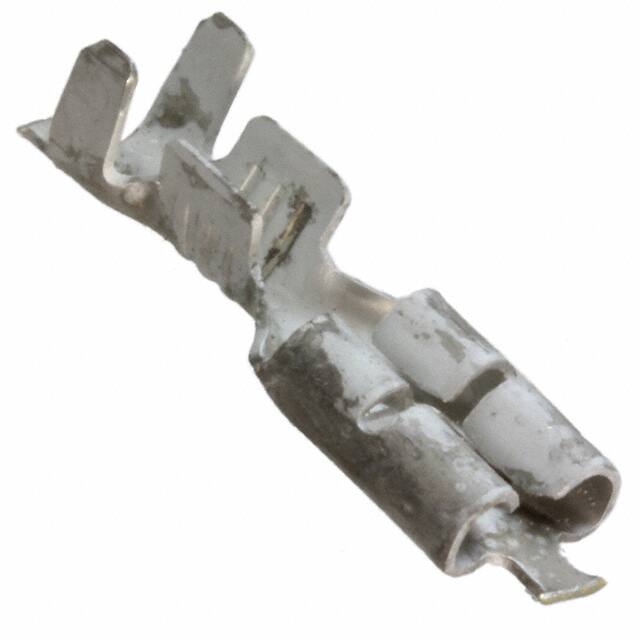

The TE Connectivity 100494-2 is a standard female quick disconnect receptacle designed for 15-20 AWG wire. It features a 0.187" (4.75mm) tab width, 0.032" (0.81mm) tab thickness, and 0.248" (6.30mm) tab length. The terminal is non-insulated and made of brass with a tin contact finish.
This connector uses a crimp termination method and is intended for free hanging (in-line) mounting. The overall length is 15.00mm (0.591"). It is suitable for applications requiring reliable, quick-connect wire-to-tab connections in a compact form factor.
The 100494-2 supports 15-20 AWG wire.
The tab width is 0.187" (4.75mm), tab thickness is 0.032" (0.81mm), and tab length is 0.248" (6.30mm).
No, the 100494-2 is non-insulated.
The contact is made of brass with a tin finish.
It uses crimp termination.
