| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination |

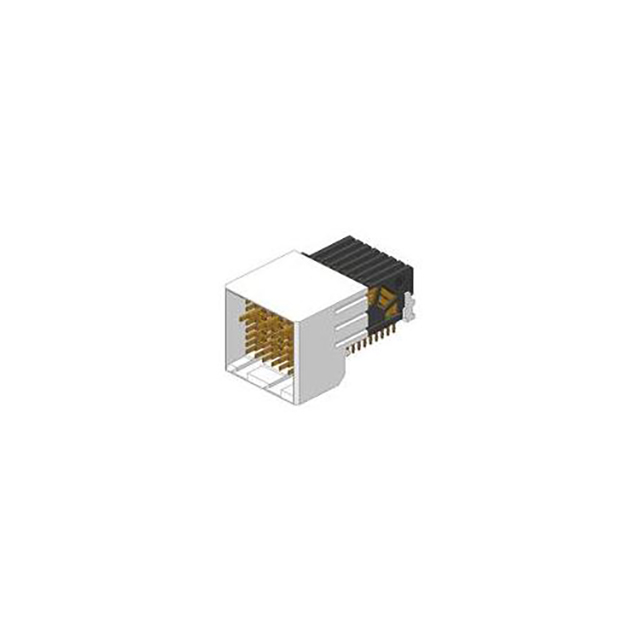

The Amphenol ICC 10045267-101LF is a high speed header connector designed for backplane and daughtercard applications. It features 72 positions arranged in 9 rows and 8 columns with a 2.00mm pitch, enabling dense signal routing in high speed digital systems.
This connector uses a board edge, through hole, right angle mounting configuration with press-fit termination, providing reliable solderless connections. The contacts are finished with gold for corrosion resistance and consistent electrical performance. The housing is natural colored and supports daughtercard usage.
Ideal for telecom, networking, and data center equipment, the connector fits applications requiring high signal integrity and compact board spacing. The male pins interface with compatible high speed receptacles in backplane architectures.
| Qty | Low | High |
|---|---|---|
| 1+ | $20.28 | $20.28 |
| 10+ | $17.58 | $17.58 |
| 25+ | $16.66 | $16.66 |
| 50+ | $16.42 | $16.42 |
| 100+ | $14.81 | $14.81 |
| 540+ | $14.80 | $14.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
72 positions, all loaded.
2.00mm (0.079 inches).
Board edge, through hole, right angle with press-fit termination.
Press-fit.
Gold.
9 rows and 8 columns.
Daughtercard connections.
