| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
350 pcs
|
350 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

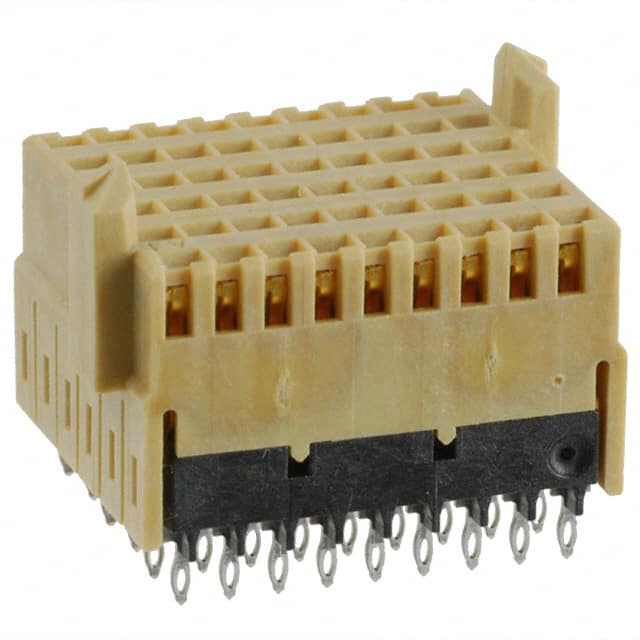

This is a high speed backplane connector from Amphenol ICC. It is a receptacle with female sockets, designed for daughtercard applications. It has 54 positions arranged in 9 rows and 6 columns with a pitch of 1.40mm. The contact layout includes 18 differential pairs and 18 ground contacts.
Termination is press-fit, and mounting is through hole. The contact finish is gold with 30µin thickness. The connector body is natural in color. It is RoHS3 compliant and has an MSL of 1 (unlimited).
This connector is suitable for high-speed differential signaling in backplane systems. No datasheet is currently available for this part number.
54 positions.
1.40mm (0.055").
Through hole.
Press-fit.
Gold, 30µin thickness.
9 rows.
18 differential pairs and 18 ground.
