| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Connector/Contact Type | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Termination Style | |
| Voltage Rating |

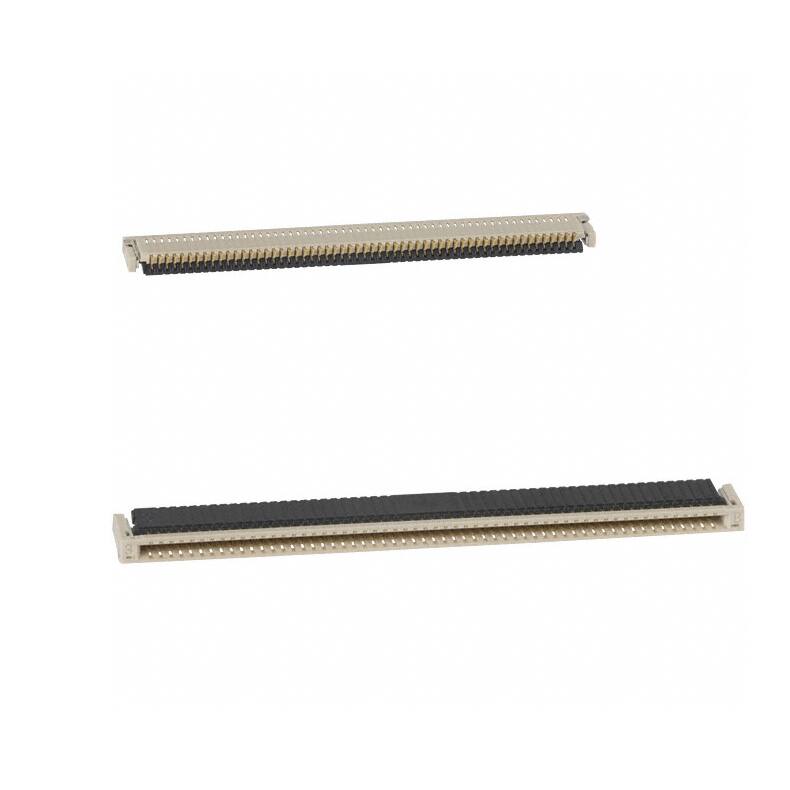

The Amphenol ICC 10042867-45MB10ELF is a 45-position FPC (Flat Flexible) connector designed for reliable board-to-flex interconnections. It features a 0.5mm pitch and a surface mount, right-angle orientation, making it suitable for compact electronic assemblies where space is at a premium.
This connector uses bottom contacts and a slide lock mechanism to secure the FPC cable. The housing and actuator are molded from liquid crystal polymer (LCP) with glass filling, providing a UL94 V-0 flammability rating. Contacts are phosphor bronze with gold plating for reliable electrical performance. The connector supports a 50V voltage rating and operates over a temperature range of -55°C to 85°C.
Designed for zero insertion force (ZIF) operation, the connector accepts FPC cables with a thickness of 0.30mm. Solder retention features aid in reliable surface mount assembly. The connector height above board is 1.30mm, enabling low-profile designs.
45 positions.
0.50mm (0.020").
50V.
Surface mount, right angle.
-55°C to 85°C.
Slide lock.
1.30mm.
