| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25,687 pcs
|
25687 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request | |
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request | |
|
46 pcs
|
46 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

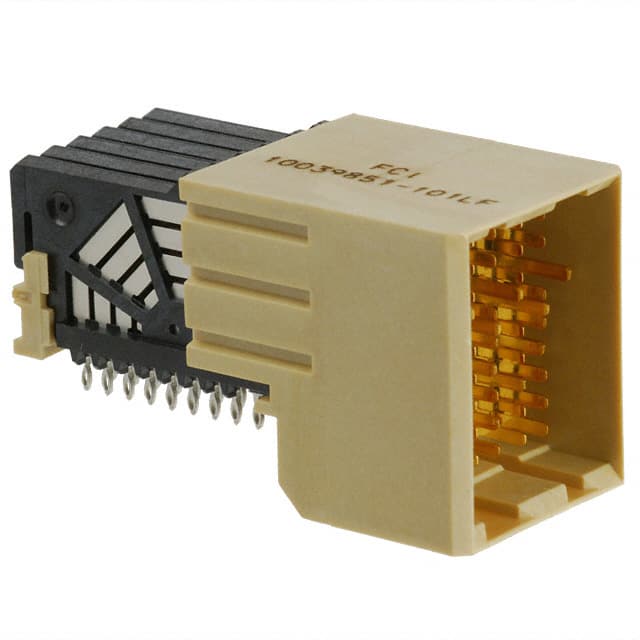

The 10039851-101LF is a high speed header connector from Amphenol ICC, featuring 54 positions arranged in 9 rows and 6 columns. It uses a 1.40mm pitch and is designed for board edge, through hole, right angle mounting with press-fit termination.
This connector has a contact layout of 18 differential pairs and 18 ground contacts, making it suitable for high speed signal transmission in backplane and daughtercard applications. The contacts are finished with 30.0µin (0.76µm) of gold for reliable electrical performance.
The connector body is natural in color and all 54 positions are loaded. It is designed for use in specialized backplane connector applications where high speed data integrity is critical.
The connector has 54 positions, all loaded.
The pitch is 1.40mm (0.055 inches).
It uses board edge, through hole, right angle mounting with press-fit termination.
The contact finish is gold with a thickness of 30.0µin (0.76µm).
The contact layout is 18 differential pairs and 18 ground contacts.
