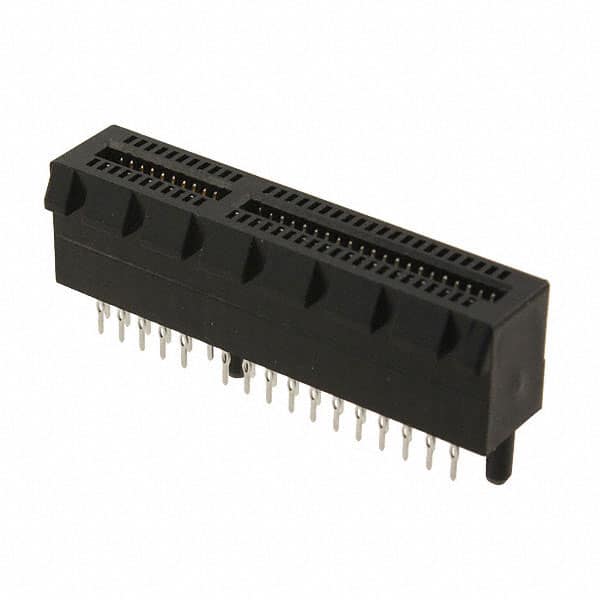

The Amphenol ICC 10039755-10111TLF is a female PCI Express edgeboard connector designed for robust connections. It features 64 positions arranged in two rows, with a pitch of 1.00mm (0.039 inches).
The connector is constructed with a copper alloy contact material and finished with gold plating for enhanced conductivity and durability. The contact finish thickness is 0.38µm (15.0µin). It utilizes a cantilever contact type and a press-fit termination method, suitable for through-hole mounting.
Key mechanical specifications include a card thickness of 1.57mm (0.062 inches) and a black color. The operating temperature range is from -55°C to 85°C. Additional features include a board guide and a locking ramp for secure installation.
This connector is designed for applications requiring reliable data transfer and connectivity within PCI Express standards. Its through-hole mounting and press-fit termination ensure a secure mechanical and electrical connection on printed circuit boards.
The pitch is 1.00mm (0.039").
It has 11 and 21 positions.
The contact finish is gold.
It uses through hole mounting.
The operating temperature is -55°C to 85°C.
It uses press-fit termination.
