| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

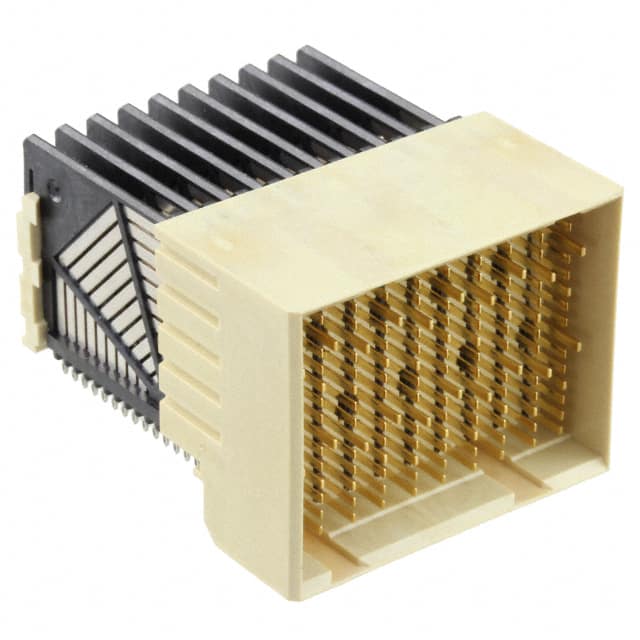

This connector is a high speed header from Amphenol ICC, designed for backplane and daughtercard applications. It features 150 positions arranged in 15 rows and 10 columns with a 1.40mm pitch. The contact layout includes 50 differential pairs and 50 ground contacts, supporting high-speed differential signaling.
The connector is mounted using a board edge, through hole, right angle configuration with press-fit termination, ensuring secure attachment without soldering. The contacts are gold plated with a thickness of 30 microinches (0.76µm), providing excellent conductivity and corrosion resistance.
Intended for use as a daughtercard connector, this part is suitable for dense, high-speed interconnect systems in networking, telecommunications, and data processing equipment. The natural color housing is designed for reliable performance in controlled environments.
150 positions, all loaded.
1.40mm (0.055 inches).
Board edge, through hole, right angle with press-fit termination.
Gold plating with 30 microinches (0.76µm) thickness.
15 rows and 10 columns.
Daughtercard connector.
50 differential pairs and 50 ground contacts.
