| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,660 pcs
|
2660 pcs | On Request | 1 | On Request | On Request | 11+ | On Request | On Request | |
|
1,900 pcs
|
1900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Layout, Typical | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

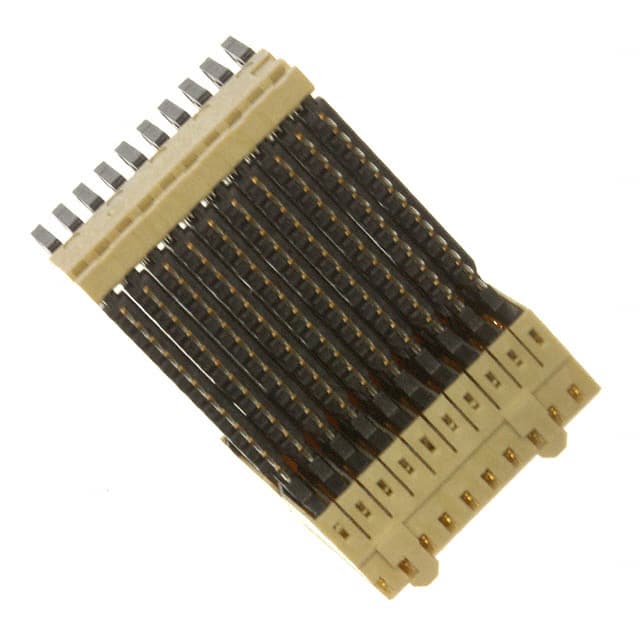

The Amphenol ICC 10035754-101LF is a high speed backplane connector designed for board edge, through hole, right angle mounting. It features 120 positions with all positions loaded, arranged in 12 rows and 10 columns at a 1.40mm pitch. The contact layout includes 40 differential pairs and 40 ground contacts, making it suitable for high speed signal transmission applications.
This connector uses press-fit termination and gold contact finish for reliable electrical performance. The housing is natural in color. It is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). The connector is designed for use in backplane systems requiring high density and high speed interconnects.
Receptacle, Female Sockets.
120 positions, all loaded.
1.40mm (0.055 inches).
Board Edge, Through Hole, Right Angle.
Press-Fit.
Gold.
40 Differential Pairs, 40 Ground.
