| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

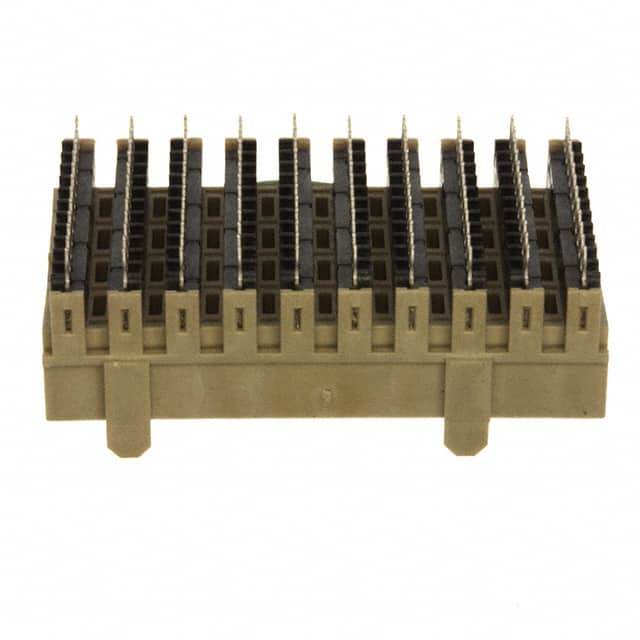

The Amphenol ICC 10035465-101LF is a high speed receptacle designed for backplane and daughtercard interconnects. It features 120 positions arranged as 40 differential pairs and 40 ground contacts in a 12 row by 10 column configuration with a 1.40mm pitch. The connector uses a through hole mounting style with press-fit termination, enabling a solderless connection that reduces assembly time and improves reliability.
The contacts are finished with 30.0µin (0.76µm) of gold over nickel, providing excellent corrosion resistance and reliable electrical performance. The natural color housing is suitable for high-density applications where signal integrity is critical. This connector is part of Amphenol ICC's high speed product line, designed to support demanding data rates in telecommunications, networking, and server equipment.
Mechanical specifications include a through hole mounting type and press-fit termination. The connector is rated for daughtercard usage. Environmental compliance data indicates RoHS3 compliance, REACH unaffected status, and MSL 1 (unlimited floor life), though these are unverified. A datasheet is not currently linked, so detailed electrical ratings such as current and voltage are not available from the provided data.
This connector has 120 positions, all loaded.
The pitch is 1.40mm (0.055 inches).
Through hole mounting with press-fit termination.
Gold contact finish with 30.0µin (0.76µm) thickness.
12 rows arranged in 10 columns.
High speed receptacle.
Press-fit termination.
