| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

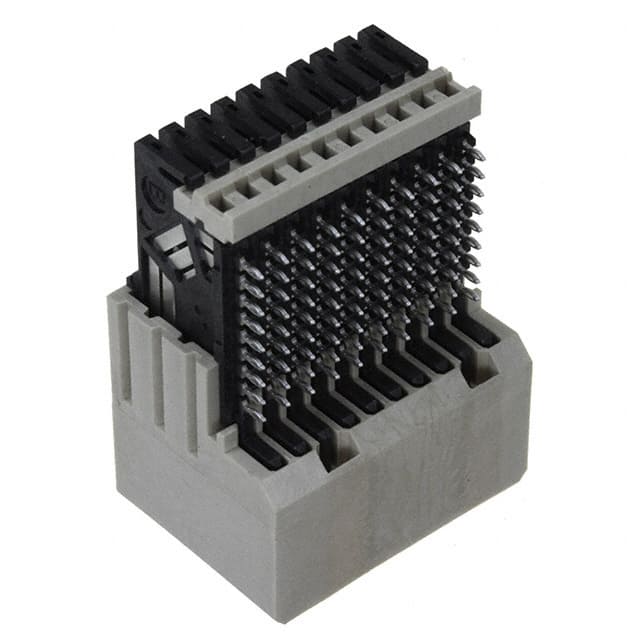

The Amphenol ICC 10034249-101LF is a high speed header connector designed for backplane and daughtercard applications. It features 90 positions arranged in a 9 row by 10 column grid with a 1.40mm pitch, enabling high density signal routing.
The connector uses a board edge, through hole, right angle mounting style with press-fit termination for reliable solderless connection. The natural color housing and gold contact finish (30µin / 0.76µm) provide corrosion resistance and reliable signal integrity.
This header is classified as a high speed connector and is suitable for use in telecommunications, networking, and data communication equipment. It is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited floor life).
The connector has 90 positions, all loaded.
The pitch is 1.40mm (0.055 inches).
Board edge, through hole, right angle mounting with press-fit termination.
Gold contact finish with 30µin (0.76µm) thickness.
High speed header.
Yes, RoHS3 Compliant (low confidence, unverified).
MSL 1 (Unlimited) with low confidence.
