| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,250 pcs
|
11250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Halogen Free | |
| Industrial Grade | |
| Lead Style | |
| Mating Cycles | |
| Medical Grade | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Specifications | |
| Storage Temperature | |
| Termination | |
| Voltage |

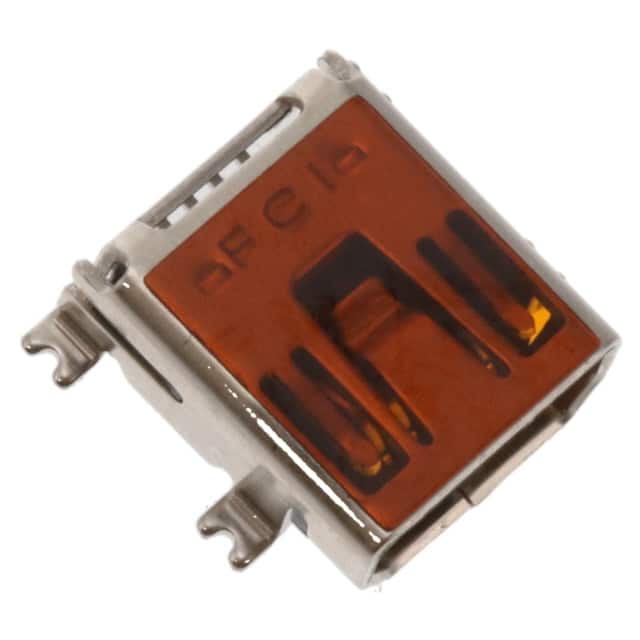

The Amphenol ICC 10033527-N3212MLF is a USB 2.0 Mini AB receptacle connector designed for compact electronic devices. It features 5 contacts in a single port configuration, with surface mount right angle termination for space-constrained PCB layouts. The connector is shielded to provide EMI protection and includes board guide and solder retention features for reliable assembly.
Electrical ratings include 1A per contact current capacity and 30V voltage rating. The operating temperature range spans -25°C to 85°C, suitable for consumer and industrial environments. With a mating cycle durability of 5000 cycles, this connector is built for repeated use.
The horizontal mounting orientation and SMD design enable low-profile integration. The receptacle is RoHS3 and REACH compliant (unverified), and has an MSL of 1 (unlimited floor life). This part is commonly used in portable electronics, data transfer interfaces, and other applications requiring a robust mini USB connection.
5 contacts.
1 A per contact.
30 V.
Surface Mount, Right Angle.
-25°C to 85°C.
5000 cycles.
Yes, it is shielded.
