| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,141 pcs
|
2141 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage |

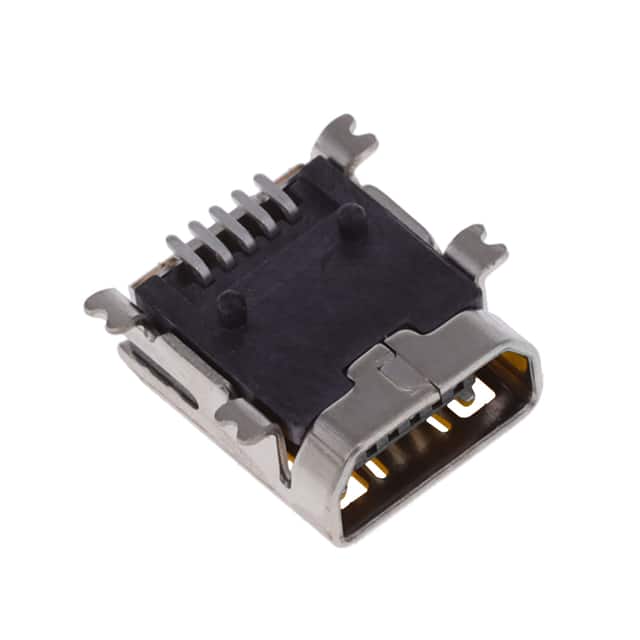

The Amphenol ICC 10033527-N3112MLF is a USB 2.0 Mini AB receptacle connector designed for compact electronic devices. It features 5 contacts in a single port configuration, with a current rating of 1A per contact and a voltage rating of 30V. The connector is shielded for EMI protection and supports up to 5000 mating cycles for reliable long-term use.
This connector uses surface mount, right angle termination with solder attachment, and includes board guide and solder retention features for secure PCB mounting. It operates over a temperature range of -25°C to 85°C, making it suitable for a variety of consumer and industrial applications.
The Mini AB form factor allows compatibility with both Mini A and Mini B USB plugs, providing flexibility in design. The horizontal mounting orientation and shielded construction help maintain signal integrity in space-constrained layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.51 | $0.51 |
| 10+ | $0.44 | $0.44 |
| 25+ | $0.39 | $0.39 |
| 100+ | $0.37 | $0.37 |
| 250+ | $0.32 | $0.32 |
| 1,000+ | $0.29 | $0.29 |
| 2,500+ | $0.28 | $0.28 |
| 5,000+ | $0.27 | $0.27 |
| 8,250+ | $0.26 | $0.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector type is USB - mini AB, receptacle gender.
The current rating is 1A per contact.
The voltage rating is 30V.
It uses surface mount, right angle mounting with solder termination.
Yes, the connector is shielded.
It is rated for 5000 mating cycles.
The operating temperature range is -25°C to 85°C.
