10031567-001CLF
Amphenol ICC
SAS Receptacle Connector with 29 positions, surface mount termination, and gold contact finish. Features a board guide for alignment.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Termination |

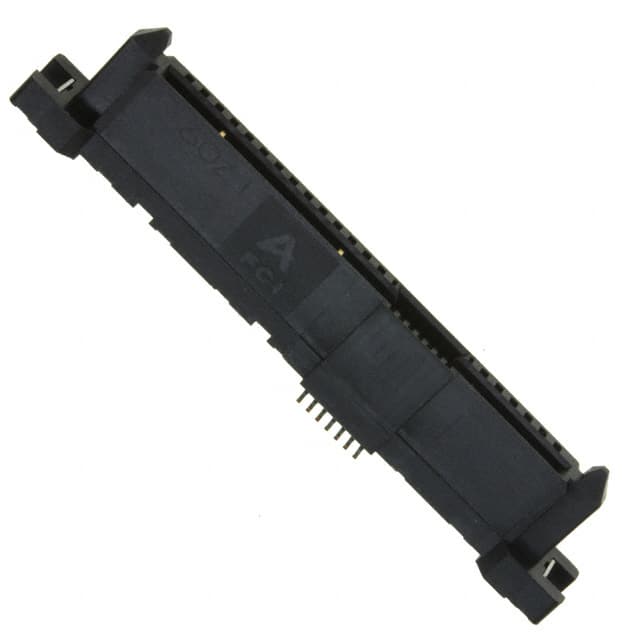

The Amphenol ICC 10031567-001LF is a 29-position SAS (Serial Attached SCSI) receptacle connector designed for high-speed data storage and server applications. This surface-mount connector features solder termination and gold-plated contacts with a thickness of 30.0µin (0.76µm) for reliable signal integrity and corrosion resistance.
A built-in board guide aids in alignment during assembly, simplifying the manufacturing process. The connector is RoHS3 compliant and has an MSL of 1 (unlimited), making it suitable for lead-free soldering processes without moisture sensitivity restrictions.
This pluggable connector assembly is part of the Amphenol ICC portfolio and is intended for use in internal data storage interfaces where SAS connectivity is required. The 29-position design supports standard SAS configurations for connecting drives to controllers in servers and storage arrays.
It is a receptacle connector.
29 positions.
Surface mount.
Solder termination.
Gold, with a thickness of 30.0µin (0.76µm).
It includes a board guide for alignment.
