Mfr Part #:

10029364-001TRLF

Available from 1 distributors

Mfr Name: Amphenol ICC

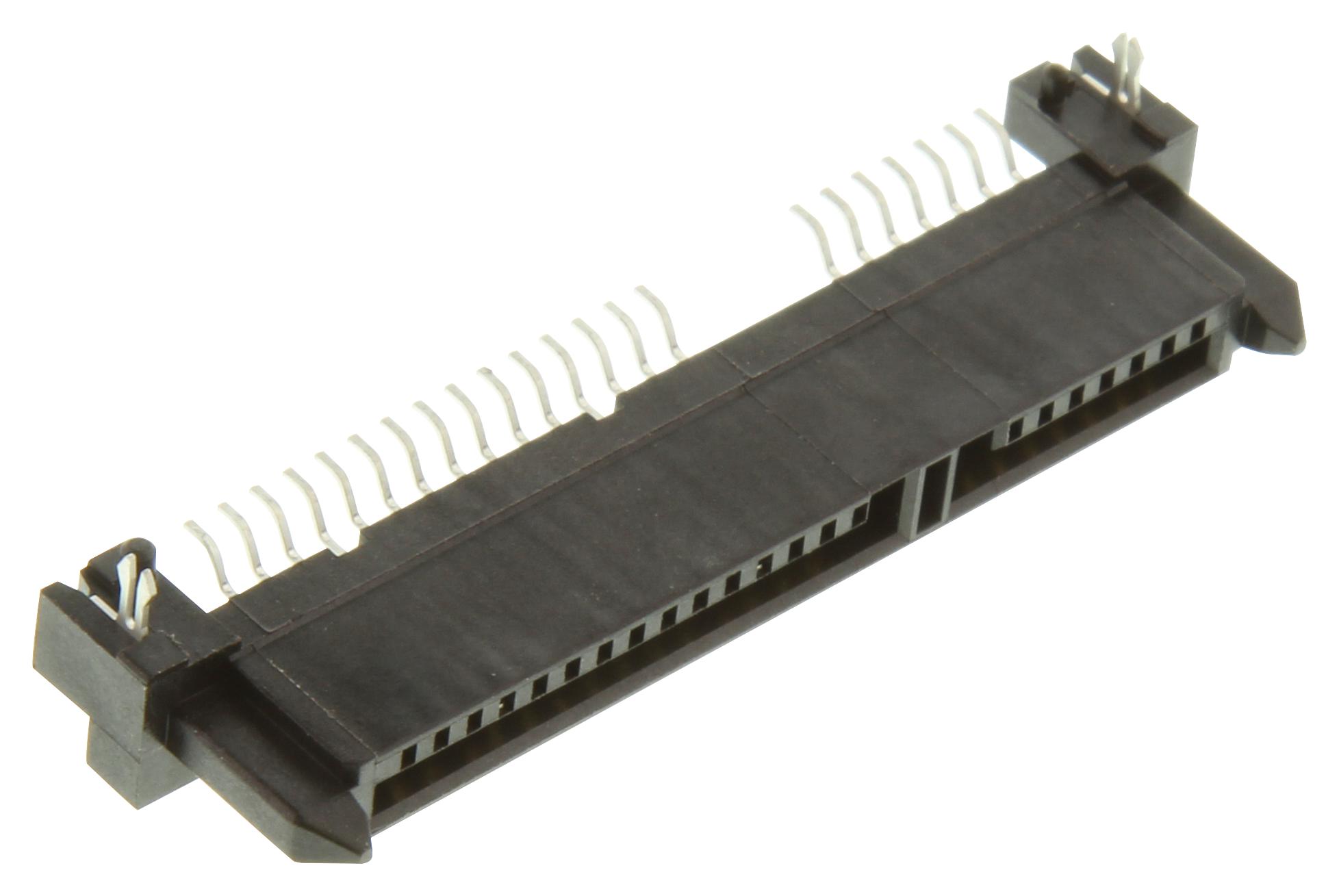

SATA receptacle connector with 22 positions, surface mount right angle termination, and gold contact finish.

✓ Total Stock: 6,057 pcs

$ Price Range: $2.97

10029364-001TRLF Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	6,057 pcs On Request	6057 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

10029364-001TRLF Description

Short technical summary and product information.

The 10029364-001TRLF is a SATA receptacle connector from Amphenol ICC, designed for pluggable connector assemblies. It features 22 positions with a surface mount, right angle mounting style and solder termination for reliable PCB attachment.

The connector includes board guide and board lock features for secure alignment and retention during assembly. Contacts are finished with gold (30.0µin / 0.76µm) for corrosion resistance and reliable signal integrity.

This component is suitable for data storage and high-speed signal applications requiring a compact, low-profile SATA interface. The right angle orientation enables space-saving designs on the PCB edge.

10029364-001TRLF Quick Information

Product Type: SATA Connector

Canonical Name: SATA Receptacle Connector, 22 Positions, Surface Mount, Right Angle, Solder Termination, Gold Contact Finish

Subcategory: Pluggable Connector Assemblies

10029364-001TRLF Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

10029364-001TRLF Estimated Pricing

Qty	Low	High
2,400+	$2.97	$2.97

Estimated market price range - modelled values for guidance only, not live distributor offers.

10029364-001TRLF Features

22-position SATA receptacle connector.
Surface mount right angle mounting.
Gold contact finish for reliability.
Includes board guide and board lock.
Solder termination for secure attachment.

10029364-001TRLF Applications

Used in SATA data storage interfaces.
Ideal for compact PCB edge designs.
Suitable for high-speed serial connections.
Common in computing and server hardware.

10029364-001TRLF FAQs

5 frequently asked questions generated from this part’s specifications.

What is the connector style of the 10029364-001TRLF?

It is a receptacle (female) connector.

How many positions does this SATA connector have?

It has 22 positions.

What is the mounting type for this connector?

Surface mount, right angle.

What is the contact finish and thickness?

Gold finish with 30.0µin (0.76µm) thickness.

Does this connector have any board retention features?

Yes, it includes board guide and board lock features.
