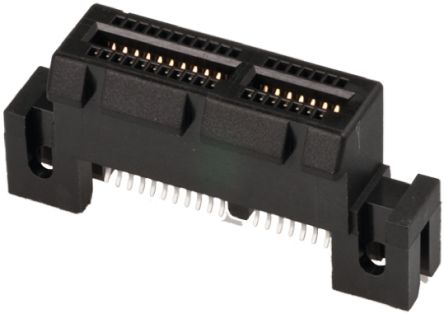

10025026-10100TLF PCI Express female edgeboard connector with 36 positions in a dual row configuration. Features 1.00mm pitch, straddle mount, gold-plated copper alloy contacts.
Mfr Part #:

10025026-10100TLF

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
PCI Express female edgeboard connector with 36 positions in a dual row configuration. Features 1.00mm pitch, straddle mount, gold-plated copper alloy contacts.
✓ Total Stock: 6,089 pcs
$ Price Range: $2.52

10025026-10100TLF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
6,089 pcs
On Request
6089 pcs On Request 1 On Request On Request 13+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

10025026-10100TLF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Thickness
Card Type
Color
Contact Finish
Contact Finish Thickness
Contact Material
Contact Type
Features
Flange Feature
Gender
Lead Style
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Read Out
Tape & Reel
Termination
View Similar Products (0)

10025026-10100TLF Description

Short technical summary and product information.

The Amphenol ICC 10025026-10100TLF is a PCI Express female edgeboard connector designed for board edge mounting with straddle mount style. It has 36 positions arranged in 2 rows with a 1.00mm pitch. The connector features female cantilever contacts made of copper alloy with 15µin gold plating. Dual readout supports 0.062" (1.57mm) card thickness. Additional features include a card extender and locking ramp. The housing is black. Mounting is via straddle mount with solder termination. The flange feature has a straddle mount opening, unthreaded, 0.079" (2.00mm). Operating temperature range is -55°C to 85°C.

10025026-10100TLF Quick Information

Product Type: PCI Express Connector
Canonical Name: PCI Express Female Edgeboard Connector, 36 Position, 2 Row, 1.00mm Pitch, Straddle Mount
Subcategory: Edgeboard Connectors

10025026-10100TLF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

10025026-10100TLF Estimated Pricing

Qty Low High
2,100+ $2.52 $2.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

10025026-10100TLF Features

  • 36 positions in dual row configuration.
  • 1.00mm pitch for PCI Express applications.
  • Gold-plated copper alloy cantilever contacts.
  • Straddle mount with solder termination.
  • Dual readout supports 0.062" card thickness.

10025026-10100TLF Applications

  • Used in PCI Express expansion card slots.
  • Ideal for card extender and locking ramp applications.
  • Suitable for board edge mounting in compact designs.

10025026-10100TLF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

36 positions.

What is the pitch?

1.00mm (0.039").

What is the mounting type?

Board Edge, Straddle Mount.

What is the gender of this connector?

Female.

What is the contact finish?

Gold, 15.0µin (0.38µm).

What is the operating temperature range?

-55°C to 85°C.

What features does this connector have?

Card Extender, Locking Ramp.
