| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
450 pcs
|
450 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Flange Feature | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Termination | |
| Termination Style |

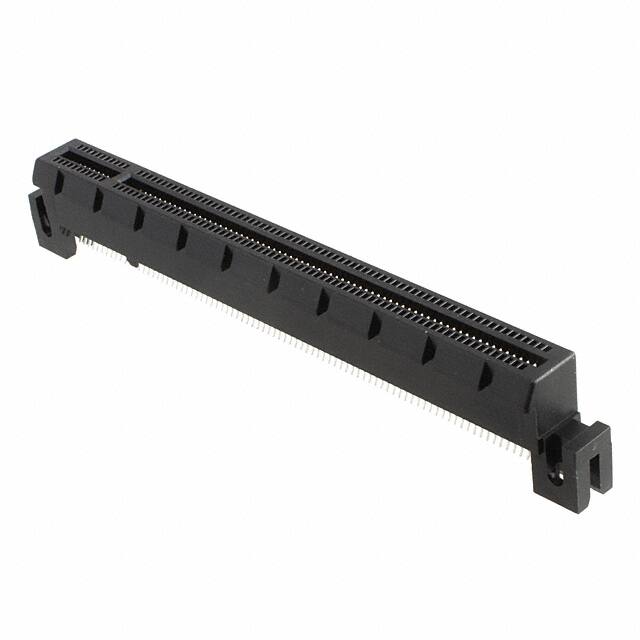

The Amphenol ICC 10025026-10003TLF is a PCI Express female edgeboard connector designed for high-speed data applications. It features 164 positions arranged in 2 rows with a 1.00mm pitch, providing a compact interconnect solution. The connector uses cantilever contacts with gold plating (30µin) on copper alloy for reliable electrical performance. It supports a card thickness of 0.062" (1.57mm) and includes features such as a card extender and locking ramp for secure mating. The straddle mount design allows for board-edge mounting, and termination is via solder. The operating temperature range is -55°C to 85°C. The connector is black in color and RoHS3 compliant (unverified). It is suitable for PCI Express applications requiring high-density connections.
164 positions.
1.00mm (0.039").
Board edge, straddle mount.
Gold, 30µin (0.76µm) thickness.
-55°C to 85°C.
0.062" (1.57mm).
RoHS3 compliant (unverified).
