Mfr Part #:

1002436

Name: 1002436
Brand: Kyocera AVX
SKU: 1002436

Mfr Name: Kyocera AVX

Description:

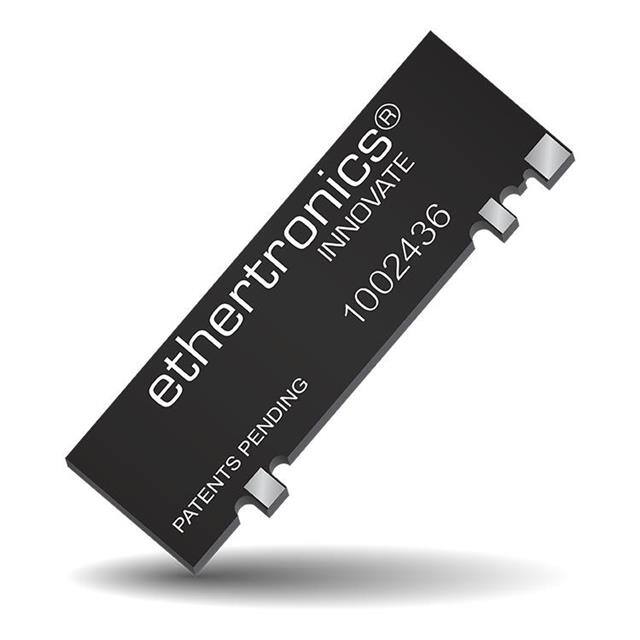

EMBEDDED ANTENNA, LTE, PCB, VERT

Stock on Request

1002436 Description

Short technical summary and product information.

EMBEDDED ANTENNA, LTE, PCB, VERT

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	Kyocera AVX
Antenna Type	PCB Trace
Applications	Cat-M, Cellular, GSM, LPWA, LTE, LTE-M, LoRa, NB-IoT, Sigfox
Frequency (Center	829MHz, 1.955GHz, 2.6GHz
Frequency Group	Wide Band
Frequency Range	698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.5GHz ~ 2.7GHz
Gain	2.3dBi, 3.2dBi, 3dBi
Height (Max)	0.063" (1.60mm)
Mounting Type	Through Hole
Number of Bands	3
Power	2 W
RF Family	Cellular
Termination	Solder
VSWR	2.5, 3.5
