| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Termination | |
| Termination Style |

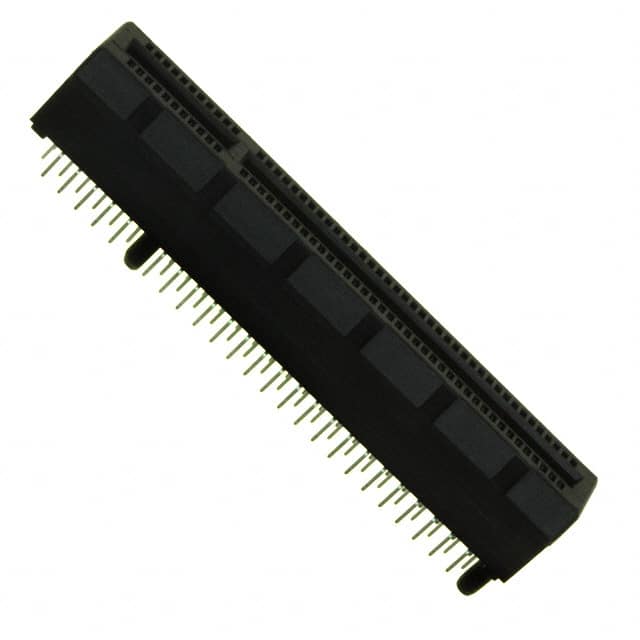

The Amphenol ICC 10018784-10202TLF is a PCI Express female edgeboard connector designed for reliable card-to-board connections. It features 98 positions arranged in 2 rows with a 1.00mm pitch, providing dual readout capability for high-density signal routing.
This connector uses cantilever contact design with gold flash finish over copper alloy contacts, ensuring good conductivity and durability. The through hole termination style allows for robust mechanical attachment to the PCB. The connector body is black and includes a board guide and locking ramp for secure mating.
With an operating temperature range of -55°C to 85°C, it is suitable for a wide variety of environments. The card thickness specification of 0.062" (1.57mm) matches standard PCI Express add-in cards.
98 positions arranged in 2 rows.
1.00mm (0.039").
Through hole with solder termination.
-55°C to 85°C.
Gold flash finish on copper alloy contacts.
0.062" (1.57mm).
RoHS3 compliant (unverified).
