| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Termination | |
| Termination Style |

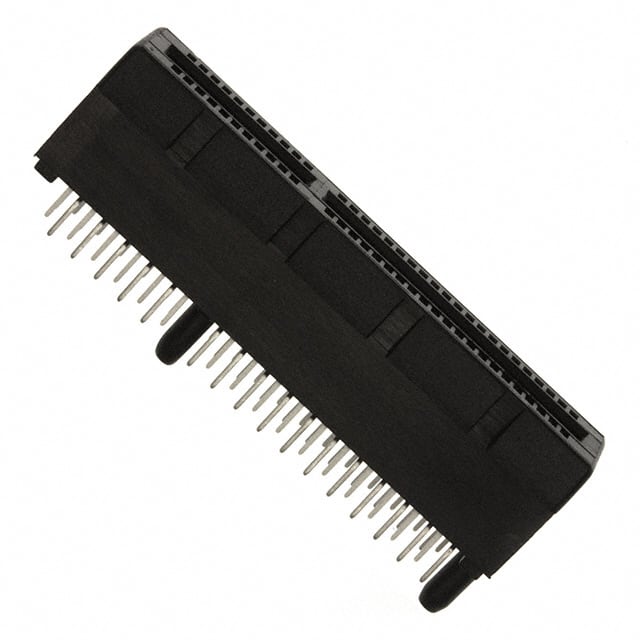

The Amphenol ICC 10018784-10101TLF is a PCI Express female edgeboard connector designed for reliable card-to-board connections. It features 64 positions arranged in two rows with a 1.00mm pitch and dual readout for balanced signal routing. The connector uses gold-plated copper alloy cantilever contacts with a 15.0µin gold finish for corrosion resistance and reliable mating cycles.
This through-hole connector uses a staggered solder termination for secure mechanical attachment to the PCB. It includes a board guide and locking ramp for easy alignment and retention during assembly. The connector accepts a 0.062" (1.57mm) thick PCI Express card and operates over a temperature range of -55°C to 85°C.
The connector is black in color and features a dual-row configuration with 11 and 21 positions per row for a total of 64 positions. It is designed for PCI Express applications requiring a robust, gold-contact interface. The cantilever contact design ensures consistent normal force and reliable electrical connection over repeated mating cycles.
The connector has 64 positions arranged as 11 and 21 per row in a dual-row configuration.
The pitch is 1.00mm (0.039 inches).
Through-hole mounting with staggered solder termination.
-55°C to 85°C.
Gold plating with 15.0µin (0.38µm) thickness on copper alloy cantilever contacts.
0.062" (1.57mm) thick PCI Express cards.
Through-hole mounting with staggered solder termination.
