| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,800 pcs
|
1800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Termination | |
| Termination Style |

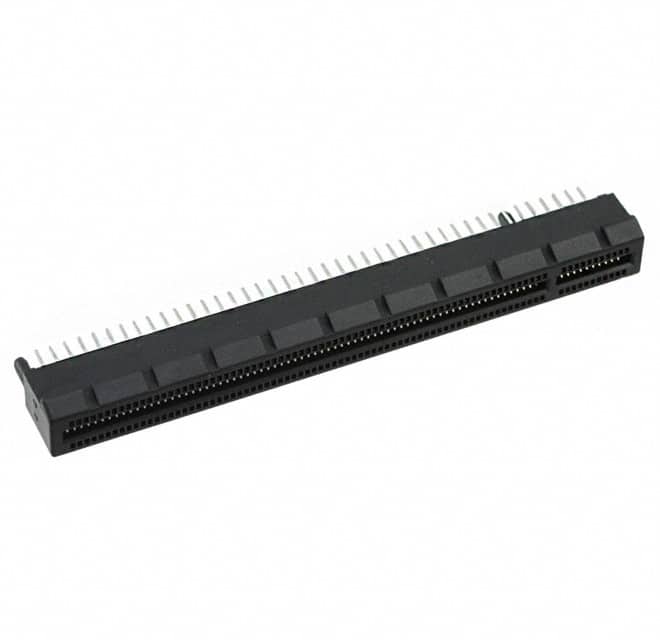

The Amphenol ICC 10018783-10213TLF is a PCI Express female edgeboard connector designed for reliable card-to-board connections. It features 164 positions arranged in 2 rows with a 1.00mm pitch, supporting dual readout for enhanced signal integrity.
This connector uses gold flash cantilever contacts made from copper alloy, ensuring good conductivity and corrosion resistance. The through-hole mounting with staggered solder termination provides secure mechanical attachment to the PCB. It includes a board guide and locking ramp for easy mating and retention.
The connector is rated for an operating temperature range of -55°C to 85°C and is housed in a black insulator. It supports a card thickness of 0.062" (1.57mm), making it suitable for standard PCI Express add-in cards.
1.00mm (0.039")
164 positions
Through hole with staggered solder termination
-55°C to 85°C
Gold flash
