| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Gender | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| SVHC Present | |
| Termination | |
| Termination Style |

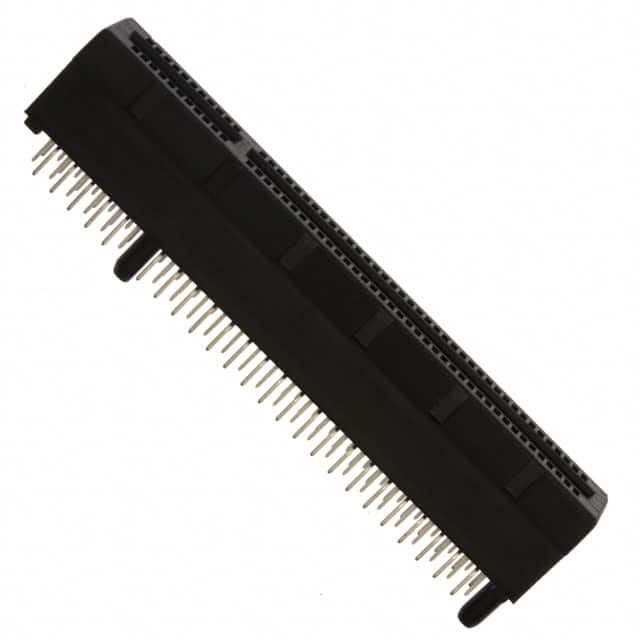

The 10018783-10202TLF is a PCI Express female edgeboard connector manufactured by Amphenol ICC. It features 98 positions arranged in 2 rows at a 1.00mm pitch, with dual readout for reliable signal integrity.
The connector uses cantilever contacts made of copper alloy with a gold flash finish. It is designed for through hole mounting with staggered solder termination. The housing is black and includes a board guide and locking ramp for secure installation.
This connector supports a card thickness of 0.062" and operates over a temperature range of -55°C to 85°C. It is suitable for PCI Express slot applications in computing and industrial systems.
The connector has 98 positions arranged in 2 rows.
The pitch is 1.00mm (0.039 inches).
It uses through hole mounting with staggered solder termination.
RoHS compliance is claimed as RoHS3, but this is unverified.
-55°C to 85°C.
Gold flash finish on copper alloy cantilever contacts.
Yes, it includes a board guide and locking ramp.
