| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,260 pcs
|
1260 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Features | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions (from title) | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Read Out | |
| Termination | |
| Termination Style |

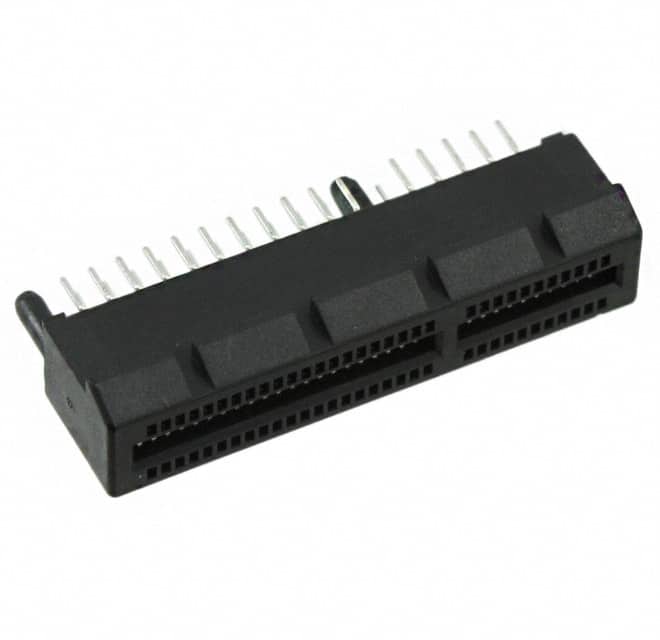

The Amphenol ICC 10018783-10201TLF is a PCI Express female edgeboard connector designed for high-speed data transfer applications. It features 64 positions arranged in 2 rows with a 1.00mm pitch, providing a dual readout configuration. The connector is through-hole mounted with staggered solder terminations, ensuring reliable mechanical and electrical connections. Contacts are made of copper alloy with a gold flash finish, offering good conductivity and corrosion resistance. The connector includes a board guide and locking ramp for secure mating. It operates over a temperature range of -55°C to 85°C. The card thickness supported is 1.57mm (0.062"), typical for standard PCI Express cards. The connector is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited). This connector is suitable for PCI Express expansion slots in computer motherboards, industrial computing, and embedded systems.
The product title indicates 64 positions, but the database attribute lists 11 and 21; this conflict requires verification.
The pitch is 1.00mm (0.039 inches).
Through hole mounting.
-55°C to 85°C.
1.57mm (0.062 inches).
Gold flash.
Yes, it includes a board guide and locking ramp.
